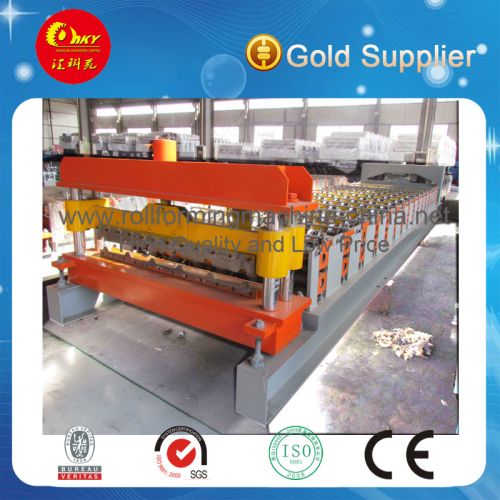

Roof Forming Machine

Roof tile machine, steel wall panel forming machine, cold roll forming machine, steel tile roll forming machine.
Components of whole set roof tile machine:
the de-coiler
coil sheet guiding and adjusting equipment
film covered device
main roll forming system
post-cutting device
hydraulic station
plc control system
support table
technical parameters of roof tile forming machine:
1 main motor power: 5.5kw
2 hydraulic station power: 4kw
3 hydraulic oil pump: cb-e310
4 sprocket: p-25.4
5 roller station: 16
6 yield strength: 32mpa
7 diameter of principal axis: 80mm (add a key between axle and roller to fix)
8 material of roller: c45steel hard chrome plating
9 processing speed: 8mmin(we can do 15mmin also, but we recommend 8mmin)
10 thickness: 0.2-1.0mm
11 installation dimension about(l*w*h): 9.2*1.5*1.4m
12 total weight: about 6.6t
13 equipment parts includes: decoiler (capacity 8t), roll forming system, hydraulic system, plc frequency conversion control system, the sensor of length, cutting system.
14 the temperature range of working line: -35--50
we also can design and manufacture as per your request!
advantage of our roll forming machine
high quality
lower costâ
durableness
high efficiency
reliable working
low failure rate
low energy consumption
trouble free after sales service
