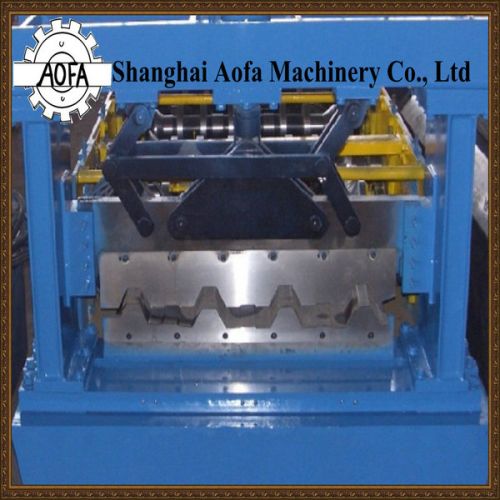

Roof Panel Roll Forming Machine

We are offering roof panel roll forming machine.
other machine we manufacture
roof panel roll forming machine
cold roll forming mahcine, color steel roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, z and c purlin machine, highway guardrail roll forming machine,cable tray machine, and so on.
machine components:
no.
name
qty
1.
de-coiler
1 set
2.
roll forming machine
1 set
3.
hydraulic cutting device
1 set
4.
plc control box
1 set
5.
output table
1 set
techincal description:
no
item
parameter
note
1
suitable
material
type
pre-paint steel
width
according to profile
thickness
0.30—0.80mm
2
product
specs
cover width
1000/1050mm refer to drawing
wave height
16/45mm
length
any length
3
machine
parameter
active shaft material
no. 45 steel tempered
up to final design
roller material
no. 45 steel chrome plated
rollr steps
11/13
side plate
14mm
main power
5.5kw
speed
10-15m/min
cutting blade
cr12 quenched
hydraulci power
3kw
4
control system type
plc frequency control system with touch screen
customized
plc brand
japan panasonic
up to final design
encoder brand
omron
5
output table
it is simple and used to load finished product.
length:6m
