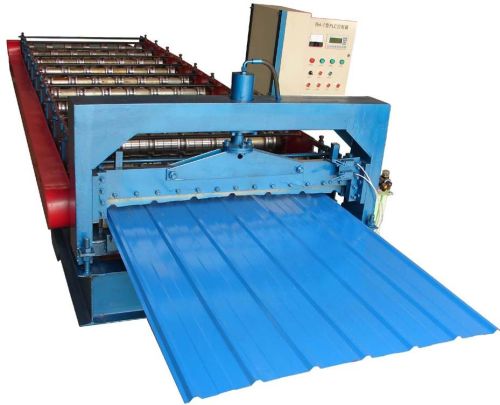

Roof Sheet Roll Forming Machine

We are offering roof sheet roll forming machine.
allstar machinery: roof panel roll forming machine,roof sheet roll forming machine,roof deck roll forming machine
specifications of roof panel roll forming machine, roof deck roll forming machine:
1. Material width: 280mm & 260mm.
2. Material thickness: 0.4mm-0.8mm.
3.suitable raw materials: pre-painted coil; zinc coated plate.
4. Forming speed: 12-15m/min.
5. Forming stations: 11
6. Material of rollers: good 45#, rigid chrome coated.
7. Power of main motor: 3kw.
8. Dimensions: about 3800mm x 1200mm x 1380mm.
9. Power: 380v 50hz 3phase 1 phase voltage 220v
the equipment include:
1. Un-coiler, 1 set
2. Main roll forming machine, 1 set
3. Hydraulic cutting, 1 set
4. Hydraulic station, 1 set
5. Electric controlling system, 1 set
6. Product rack (un-powered), 1 set
7. Instruction book, 1 piece
we can design and make according to customers requirement.
major products and services:cold roll forming machine for corrugated tile, glazed tile, c purlin, z purlin, roof panel and wall panel, etc.
