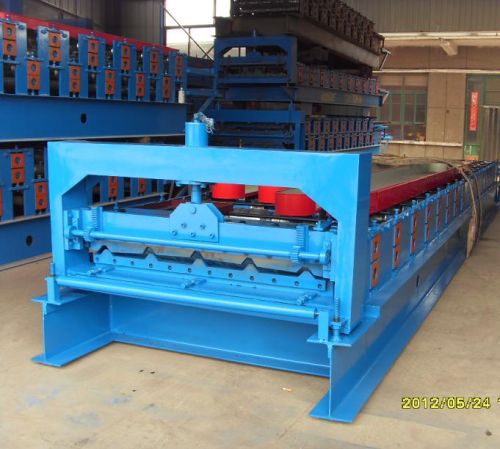

Roof Tile Forming Machine

We are offering Hot Sell in India Roof Tile Forming Machine, forming machine
manual decoiler, main forming machine, hydraulic cutter, electrical control system,hydraulic system, normal receiving table.
4. Technical specifications and details
number of forming steps: 16 steps
material of shaft: 45# steel hardening and tempering treatment. Outer diameter 70mm
material of rollers: 45#steel, plating hard chrome on the surface, rigidity hr55â°-57â°
main motor power: 4 kw
hydraulic motot power: 3kw
voltage:415 v-50 hz-3 phase
the forming speed: 8m/min
the plating chromium�s thickness on the surface of rollers: 0.05mm
width of the steel: 1220mm
wall plate thickness:14mm
main stand:350# h steel welding structure
material of blade: cr12 mould steel with quenched treatment60
-62�
display: textscr delta plc with transducerï¼�keep tolerance withinâ±
2mm�
� encoder: �rui pu� or �xin ya� (wu xi)
� frequency converter: �sanjing� (guang zhou )
� controlling screen : liquid crystal display(text panel)
� electric relay : delixi jqx-13f2z
� circuit breaker : delixi
thickness of the steel: 0.3-0.7mm
dimension of the machine: 8000mmx1500mmx1200mm
weight of the machine: 5000kg
