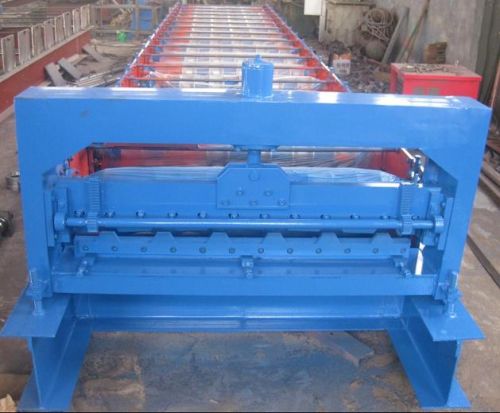

Roofing Panel Forming Machine, Roll Forming Machine

We are offering roofing panel forming machine/ roll forming machine.
number of forming rollers : 16 rollers
material of shaft: 45# steel hardening and tempering treatment. Outer diameter 70mm
material of rollers: 45#steel, plating hard chrome on the surface, rigidity hr55°-57°
main motor power: 4 kw
the forming speed: 8-12 m/min
the plating chromium’s thickness on the surface of rollers: 0.05mm
width of the steel: 914 mm
wall plate thickness:14 mm
chains:1inch
main stand: 350# h steel welded structure
effective width after forming: 686 mm
thickness of the steel: 0.3-0.7mm
dimension of the machine: 8000x1500x1200mm
weight of the machine: about 4000kg.
