Room Thermostats, Certification : CE, ISO9001:2008, ISO14001:2004

we are offering room thermostats.
Product Description
Specifications

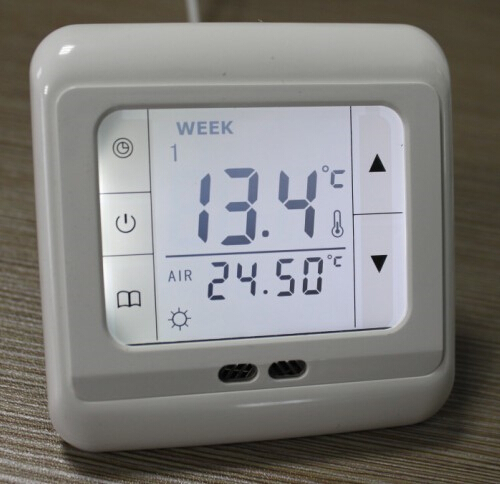

BYL105B Under Floor Heating Auto Control Room Thermostat China:
For Room And With Programmable,Easy Heat Digital Thermostat.
Weekly programmable heating room thermostat with touch screen for underfloor heating system can loop on every week every day.
General
1.BYL105B Touch Screen Heating Thermostat with weekly programming adopts the latest single-chip
computer control technology. It has the high reliability and powerful anti-jamming.
2.Setting daily 4 periods of time and the setting temperature.
3.The selection for manual control or automatic periods of time control.
4.The application of electric heating of the electric heating equipment and Water heating system of electric
heating re-actuator control.
5.Easy operation and utility.
6.Touch screen input, Nice looking and easy-cleaning.
7.Kinds of periods of time modes. 5+26+17
8.The maximum switch power is 3600W.
9.The wide voltage input: AC75-265V 50Hz60Hz
10.Mini size junction box. It is suitable for the entire world.
11.The clock continues when power fail and it won’t affect the period of time settings.
12.Flame retardant and safe.
13.Extra over heating sensor label length: 3 meters
Technical parameters
Power Supply: 75-250VAC(24± 10% Optional), 5060 Hz
Set point Range: 5 to 35°C (programmable)
Display Range: 0 to 40.0°C
Inside Sensor: NTC B=3380 10k @25degrees Celsius
Extra Sensor: Length=3M NTC B=3380 10k @25degrees Celsius
Setting Unit: 0.5°C step
Indication Accuracy: 0.1°C
Dimension: 86 x 86 x 12mm ( H x W x D )
Weight: 175 gpiece
Inner Box Size: 100 x 100 x 60 mm
