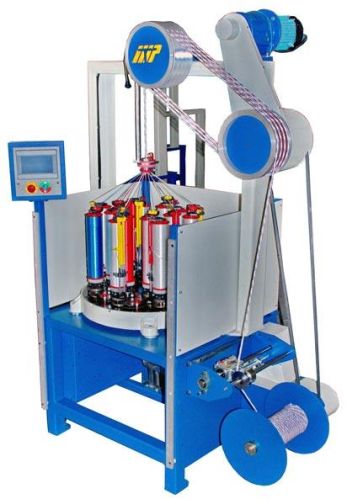

Rope Braiding Machine

Rope Braiding Machine that we offer is manufactured using highly advanced techniques under the strict vigilance of experts.  Our Rope Braiding Machine is subjected to stringent quality tests on Rope Braiding Machine with the objective of eliminating each and every possibility of defect from it. We are named among the renowned Manufacturers, Exporters and Suppliers of Rope Braiding Machine. One can obtain Rope Braiding Machine from us in small as well as bulk quantities.

Key Features:

• AC Frequency drive
• User friendly touch screen display with PLC control
• All Parameters will be shown on display
• Hardened and grounded cam base
• Teeth grounded horn gear
• Stoppage at empty bobbin.
• Meter set point in display for desired length
• Braid length adjustment by display
• Adjustable braiding point setting
• Machine  with fenced guard
• Machine lubrication warning

Optional Features:

• WIFI connectivity system for computer
• Colling Machine
• Bobbin winder four station
• Bobbins

Specifications:

• Rope Range : 6mm to 24 mm
• Braid Length : Adjustable
• No. of carriers : 16 Carriers
• Pitch size : 160 mm
• Power : 0.9 KW
• Speed : 225 RPM (Horn Gear)
• Bobbin size : 85 mm Dial x 320 mm Traverse
• Take up wheel : 300 mm dia.
• Dimensions : 4' 4" x 3; 1" x 7' 3"
• Weight of machine : 600 KGS

Also available of 16 / 24/ 32/ 48 Carriers.
