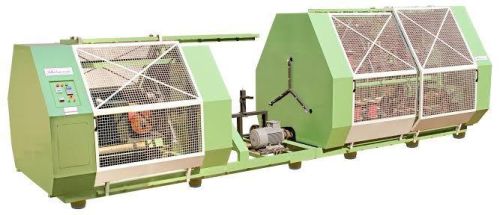

Rope Making Machine (MP/R-6A)

Model

MP/R-6A

No. of Strand ( No. of Ply )

3 Strand ( 3 Ply )

Rope Range

6 MM To 12 MM

Strand Flyer Speed

1000 RPM

Rope Flyer Speed

500 RPM

Twist Per Minute

Twice the Flyer Speed

Rope Lay

S & Z Type

Twist Range

20 To 50 TPM

Twist Factor

1 RPM = 2 Twist

Twist in Strand

Adjustable

Drive

By Timing Belt & V-Belt

Pay of Packages ( No.of Feeding Bobbins )

3 x 10 = 30

Feeding Bobbin Dimensions

250 mm dia. x 300 mm Tra. x 38 mm Hole

Gear Box

Elecon Make

A.V.M.Pads

For Vibration free smooth working

Anti Twister Unit

For Strong & Fine construction of the Rope

Rope Die Set

For Getting Perfect Roundness of the Rope

Sliding Door

For Safety, Quick & Easy Operation

Electrical Section

Motor

15 HP A.C.Motor ABB OR Siemens make

Control Panel

AC Invertor Control Panel Delta Make

Auto Stop System

Preventing Raw-Material Wastage

Counting Meter

Pre-Set Digital Length Counter Meter Multi Span Make

Balancing

Electronically Balanced

On/Off Switches

Provided in 3 different Places for Speedy & Easy Operation

Production

Take up System

Bobbin Filling

Take up Bobbin Dimensions

405 mm dia. x 355 mm Tra. x 51 mm Hole

Production Capacity (Production Capacity varies depends on the Grade of the Raw-material selected,TPM, RPM and efficiency of Operator.)

Machine Dimension

Length : 26"

Width : 7"

Height : 7"

Weight

2600 Kgs ( Approx.)

OPTIONAL

Capston Roller Attachment

Capston Roller Attachment

Will be optional and will cost extra if required

Direct Coiling Head

Will be optional and will cost extra if required
