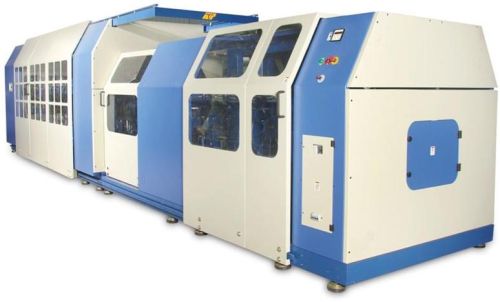

Rope Making Machine (MTP/12)

Rope Making Machine (MTP/12) that we offer is manufactured keeping in mind variegated requirements of different industries. Also, it is tested by a team of experienced quality controllers on the parameters of quality, durability and functionality. Apart from manufacturing and testing processes, special attention is also given on the delivery of Rope Making Machine (MTP/12) in order to maintain reputation in the eyes of buyers.

Specifications :

• Rope range : 12mm to 24mm
• Strand flyer RPM : Max. 500
• Rope flyer RPM : Max.500
• Twist range : 7 to 32 TPM
• Twist per minute in closer : One twist per revolution
• Twist per minute in strand : Twice the flyer speed
• Rope Lay : Z
• Pay of package size : 250mm Diameter x 300mm Traverse**
• Take up capacity : 64Kgs (Aprox.)
• (600mm Dia x 480mm Traverse x 150mm ID)

Key Features :

• A/C Drive.
• Additional mechanism driving System at pay off side to pull yarn from bobbin.
• Digital Length Control Meter.
• Door sensor
• Take Up Output on M.S.Bobbin

Optional Feature :

• Electric chain hoist arrangement
