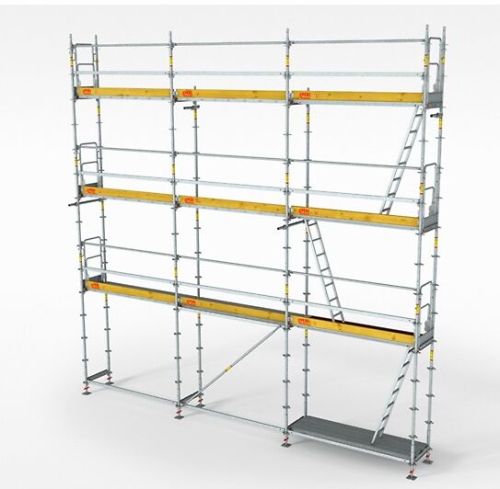

Rosett Modular Scaffold

With PERI UP Rosett, complicated geometries can also be scaffolded cost-effectively, e.g. old buildings with bay windows and cantilevers. The Rosett nodes on the standards facilitate easy and safe assembly whilst the steel decks have a particularly high load-bearing capacity.
The perfectly matched system and component dimensions allow any combination of frame scaffolding with modular scaffolding.The integrated protection against lifting provides access ways of equal height and without any obstacles. The requirements regarding working safety also remain fulfilled: the guardrail heights are according to the regulations and toe boards can be fitted from end to end.
PERI UP Rosett meets the requirements of the European standards EN 12810 and EN 12811 and fulfills the requirements for protection scaffolds according to DIN 4420-1 (safety scaffolds and roof safety scaffolds for fall heights ≤ 2.0 m, protection fans)Working scaffolding made of parts from Rosett modular scaffold system with 72 an 104 cm widths, standard 24 m heights
Safe and fast assembly
Assembled with guardrail in advance and Guardrail Coupler UPW or ledger in advance
Integrated lock against lifting
Gravity Lock secures ledger immediately when assembled
Rectangular shaped Rosett prevents rolling away
Load classes associated deck length
Width 72 cm: 1 up to 4
Width 104 cm: 1 up to 6
Steel deck 32x250 cm ≤ 6
Steel deck 32x300 cm ≤ 5
Handling
Standard 2,0 m: 10,0 kg
Ledger 3,0 m: 8,7 kg
Steel deck 32x250cm: 17,0 kg
Steel deck 32x300cm: 19,9 kg
Assembly using guardrail in advance: standard + guardrail: 13.1 kg
Connection Possibilities
Metric grid dimensions every 25 cm
Nodes every 50 cm
12 connections for ledgers and diagonals
