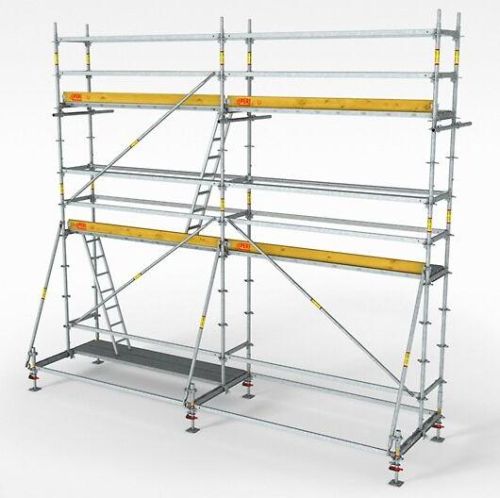

Rosett R Scaffold System

The PERI UP Rosett R scaffold system is the modular reinforcement scaffold for efficient work. A reinforcement scaffolding is a special type of facade scaffolding. It is characterized by the fact that no anchors are required. The units are stable without the use of ballast and can thus be moved without the need of any assembly work. Erection instructions are available for the reinforcement scaffolding and contain all safety-relevant guidelines as well as lifting instructions. The different heights required in the course of formwork planning are taken into consideration during the configuration of the scaffold units.
Stable
Without anchors – without ballast in front of formwork and walls
Planned in advance
Fast calculation of material requirements thanks to the modular design principle
Quick and efficient
Complete units can be moved by crane due to the extremely tight connections.Used as working scaffold in Scaffold Groups 1-3 according to DIN 4420-1 or Load Classes 1-3 according to EN 12811-1 (0.75 – 2.00 kNm²)
Fullfills wind load requirements according to DIN EN 1004 and DIN EN 12811
System widths 72 cm and 104 cm
Base width 150 cm or 250 cm
Maximum standing height 6.60 m (with base width 150 cm) or 10.80 m (base width 250 cm)
Crane-moveable units through extremely tight connections
