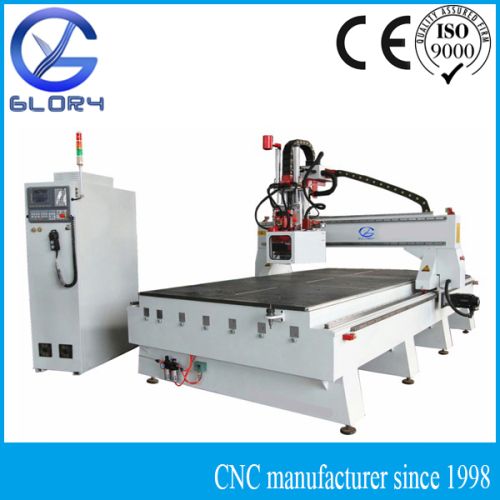

Rotary Auto Tool Changer CNC Router

We are offering rotary auto tool changer cnc router.
Key features:
seamless steel structure
9kw hsd air cooled spindle
rotary auto tool changer on the gantry
powerful yaskawa ac servo drive motors
circular auto tool changer with 8 positions
helical rack and pinion
re-carving after power failure
well compatibility: type3, castmate, artcam, etc.
H30 hiwin linear guide
ideal for:
furniture manufacturing
advertisement
shop fitting
woodworking
density board
acrylic
soft metals
composite and much more
processing effect:
milling, cutting, engraving, drilling, relief, etc.
Specification gy-ms1325ad
working area
(x axis) 1300mm
working area
(y axis) 2500mm
clearance
(z axis) 300mm
table size 1440mm*3140mm
precision 0.05mm
spindle 9kw hsd
spindle speed adjustable 0-24,000 rpm
tool change rotary tool-change
drive system
(x & y axes) helical rack & pinion
drive system
(z axis) taiwan ball screw
lubrication manual oil-injection system
drive motors japanese yaskawa servo motors
driver yaskawa
inverter fuling
reducer taiwan planetary gear reducer
command g code
cutter diameter ï�3.175-ï�20mm
maximum travel speed 60mmin
maximum engraving speed 40mmin
table top vacuum table with t slots
vacuum pump chinese tongyou 5.5kw
controller syntecnc studio
power requirements 3-phase 380v50hz (220v50hz optional)
weight 2200kg
optional:
alignment pop-up pins
gang drill
customized table size
added rotary axis
more or less tool positions
automatic oil-injection system
etc.
