Rotary Carbon Potentiometer

We are offering rotary carbon potentiometer.

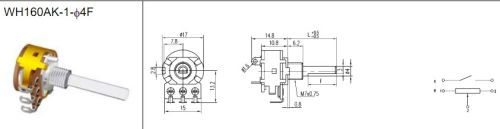

This is 16mm linear potentiometer with switch and metal shaft
this item is rohs and have passed iso quality certificate. The diameter of the shaft is special, only φ 4mm, this kind item is our main products export to india and brasil market.
the detailed specifications of this item are as below:
model : wh160ak-1
1.tolerance of resistance: ± 20%
2.power rating: 0.125w 0.06w
3.rated voltage: 200v 150v
4.insulation resistance: dc500v 100mohm min.
5.withstanding voltage: ac500v 1minute
6.total rotational angle: 300°
7.switch contact resistance: less than 20mohm
8.switch working force/torque: 50~300gf. Cm
9.switch ratings: 12vdc 1a
10.operating force: 20~200gf. Cm
11.shaft stop strength: 3kgf. Cm min.
12.mechanical endurance: 10000 cycles
13.switch life: 10000 thimes
ps: we can make some changes according to customer's request !
