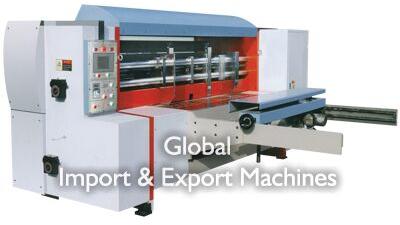

Rotary Die Cutting Machine

Listing ID #4219023

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Die-cutting roller is the high quality steel materials, 30mm thickness, balance correction, hard-chrome plating. Wallboard is high-quality cast iron material, 50mm thickness, and large processing....

View More Details

Send Enquiry

Product Details

Die-cutting roller is the high quality steel materials, 30mm thickness, balance correction, hard-chrome plating.
Wallboard is high-quality cast iron material, 50mm thickness, and large processing center production.
Soft-roll automatic grinding institutions improve rubber sleeve to pouches repeat usage and can grinding 3-4 times.
Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line
The rubber is CUE polyurethane from America, easy to install and can die-cutting 12millon times.
Mechanical soft roll about 40 mm lateral movement, the pads wear uniform.
Six level grinding gears used 40cr material, low noise, long life.
Die-cutting roller cylinder automatic separation devices to reduce rubber wear.

Model	Max feeding of paper(mm)	Min feeding of paper(mm)	Thickness of feeding pape	Feeding speed (pcs/min)	Power of main motor	Machine weight
GIEM1700	1700 x 1200	350 x 500	11mm	30-120	4.0kw	4500kg
GIEM2000	2000 x 1200	350 x 500	11mm	30-120	5.5kw	5000kg
GIEM2100	2100 x 1400	400 x 600	11mm	50-160	7.5kw	5500kg
GIEM2400	2400 x 1400	400 x 600	11mm	50-160	7.5kw	6000kg
GIEM2500	2500 x 1400	500 x 600	11mm	30-100	11 kw	7000kg

Company Details

We Global Import Export Machines are primarily engaged in engineering of corrugated machines and plants for manufacturing of 3 Ply and 5 Ply corrugated boxes, exercise notebooks, etc. We also manufacture and export ancillary machinery for printing press. All our products are marketed under the brand GLOBAL
Versatility, Reliability, and safety are paramount in our designs. Our Corrugated Box Making Machinery Plant requires very little maintenance and can be used by anyone in your plant because of user-friendliness.
These paper product manufacturing machines can be set up in minutes and are ready to use instantly. Sophisticated designing & simple construction of our equipment translates to low maintenance and long performance life.
We endeavor to provide our customers with premium quality corrugating box making machinery and plant supported by unbeatable service and technical advice. Our efforts to elevate our machinery quality up to the international quality & safety standards.
Our "RAVI" brand Corrugated Box Making Machinery and Plant, Platen Punching, Creasing & Embossing Machine can be found in sheet plants, government facilities, packaging industry, railways, end-user facilities- anywhere there is a need for "Just-In-Time" production or where corrugated inventory and warehousing is a concern
