Semi Automatic Hydraulic With Mechanical Rotary Drilling Rig

₹ 20 Lakh - ₹ 1.50 Cr / per unit

MOQ1 per unit
Automatic GradeSemi Automatic
Driven TypeHydraulic With Mechanical
CertificationCE ISI
Brand NameDIRECT ROTARY DRILLING RIG
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Importer, Trader
Preferred Buyer Location All over the world

Company Information

Mahesana, Gujarat

5.0/5

Ask for more detail from the seller

Report incorrect details

Power TypeTruck Engine / Deck Engine
ConditionNwe
Driven TypeHydraulic With Mechanical
Brand NameDIRECT ROTARY DRILLING RIG
Hole Diameter900-1000mm
Drilling depthMinimum Depth-200' Feet Maximum 2500' Feet
Country of OriginIndia
After-Sales Service ProvidedLife Time After Sale Service / 1 Year Free Service
Availability8000 Kgs To 30000 Kgs
Number Of FlowerRotary Drilling Rig, Borewell Drilling Rig Machine
FeatureEasy To Operate, High Performance, High Strength, Highly Durable, Sturdy Construction
CertificationCE ISI
ApplicationWater Well Drilling / Borewell Drilling /Tube Well Drilling / Pilling Machine (construction), Water Well, Borewell, Pilling
Automatic GradeSemi Automatic
Rotary Table24
Hole Diameter Range175MM to 1600MM
Drilling MethodDirect Rotary
Prime MoverTruck Engine or Deck Engine
Mud Pump7
Draw Work28
Pull up Force51000 Kgs
Maximum Depth500 Meter(1640 feet)
Power Tack off1 input 4 output

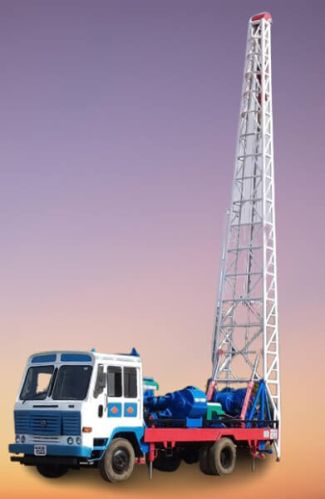

Direct Rotary Drilling Rig/Water Well Drilling Rig/Borewell Drilling Rig Machine/Rotary Drilling Rig Machine

Model Name: DEW DR-1500

APPLICATION..............................................DIRECT ROTARY DRILLING RIG /WATER WELL DRILLING RIG
DRILLING METHOD-------------------------------DIRECT ROTARY
HOLE DIAMETER RANGE--------------------------6 1/2" TO 26"
MAXIMUM DEPTH----------------------------------500 METERS (1640 FEET)
PULL UP FORCE------------------------------------51000 KGS
PRIME MOVER--------------------------------------TRUCK ENGINE OR DECK ENGINE
POWER TACK OFF----------------------------------1 INPUT 4 OUTPUT
ROTARY TABLE-------------------------------------24" CROWN 6" HEXAGONAL SPINDAL HOLE
DRAW WORK---------------------------------------28" CHAIN DRIVE
MUD PUMP-----------------------------------------7"x10" DOUBLE ACTING DUPLEX WITH CENTRIFUGAL PUMP
Note:- we are happy to inform you we have different models of rotary drilling rigs are available for all types of customer requirements. rotary drilling rigs equipments are also available for all models and types.
