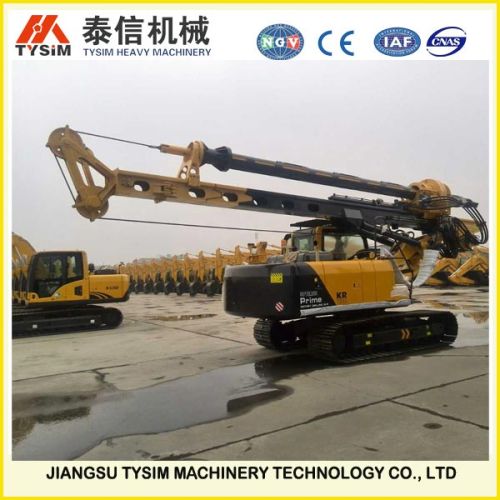

Rotary Drilling Rig

We are offering rotary drilling rig. Torque 80 kn.m
max. Diameter 1000 mm
max. Drilling depth 28 m(4 node)22 m(3 node)
speed of rotation 8~30 rpm
max. Crowd pressure 90 kn
max. Crowd pull 120 kn
main winch line pull 80 kn
main winch line speed 80 mmin
auxiliary winch line pull 35 kn
auxiliary winch line speed 40 mmin
stroke(crowd system) 2000 mm
mast inclination(lateral) ±3°
mast inclination(forward) 4°
max. Operating pressure 34.3 mpa
pilot pressure 3.9 mpa
travel speed 2.8 kmh
traction force 98 kn
operating height 12580 mm
operating width 2600 mm
transport height 3250 mm
transport width 2600 mm
transport length 9150 mm
overall weight 24 t
