Rotary Drilling Rig

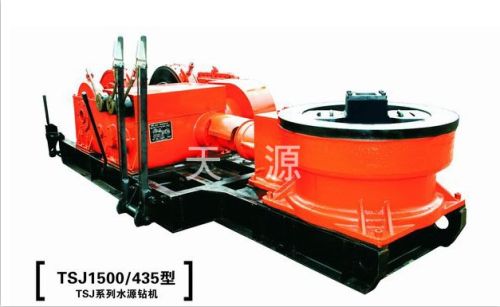

We are offering tsj1500660 water well drilling rig
usage
　　tsj1500660 drilling rig is mainly used for drilling and exploration of water resource, medium and shallow petroleum, natural gas, coalbed methane and geothermy, also used for geology, mine construction and other engineering borehole.
main technical parameters
　drilling depth（φ114mm φ89mm φ73mm drill pipe ） (m)
1000 1500 2000
　id of rotary table (mm）
　　　　φ660
　rotating speed of rotary table（forward ,reverse） (rmin)
　　37 52 84 145
　max. Output torque of rotary table (kn.m）
　　21
　max. Hoisting capacity of single rope (kn）
　　90
　hoisting speed of winch(second layer) (ms)
　　0.84 1.90 3.3
　input rotating speed of clutch (rmin)
　　730.
