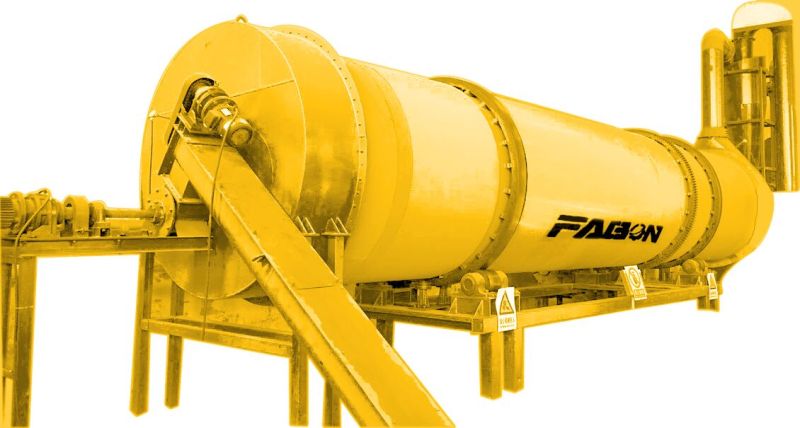

Paint Rotary Drum Sawdust Dryer 2000 Kg/HR, Color : Golden Yellow

FABON 2000 kg/hr Rotary Drum Dryer – High-Performance Biomass Drying System for Industrial Applications Efficient, Energy-Saving Rotary Dryer for Biomass, Feed, and Agro-Waste The FABON 2000 kg/hr Rotary Drum Dryer is an advanced, high-capacity drying system engineered to reduce moisture content in a wide range of biomass materials including sawdust, wood chips, paddy husk, rice bran, bagasse, and agricultural residues. Manufactured by FABON Engineering Pvt. Ltd., Nashik (India) — an ISO 9001:2015-certified manufacturer and exporter — this dryer combines robust design, consistent performance, and low energy consumption to deliver reliable results in industrial-scale operations. With a drying capacity of 2000 kg/hr (2 tons per hour), this system is ideal for biomass pellet plants, briquette production lines, and animal feed industries that require efficient, continuous drying for high-moisture raw materials. Working Principle The FABON Rotary Drum Dryer works on the principle of direct or indirect heat transfer through a rotating cylindrical drum. Feeding: Wet biomass is fed into the rotating drum using a conveyor or screw feeder. Drying Process: Hot air from the furnace or biomass burner passes through the drum in co-current or counter-current flow. The drum continuously rotates, lifting and showering the material through hot air for uniform drying. Discharge: The dried material exits through the discharge chute, ready for use in pelletizing or briquetting. The system ensures efficient moisture reduction (from 35–50% to below 12%) with minimal material degradation and energy wastage. Applications Biomass Pellet Production Plants Briquette Manufacturing Units Wood Processing Industries Sawdust & Wood Chip Drying Paddy Husk, Bagasse, and Corn Cob Drying Animal Feed, Alfalfa, and Grass Drying Sludge, Manure, and Fertilizer Drying Agro-Waste and Forestry Residue Drying

Technical Specifications ParameterSpecification Model FABON RD-2000 Capacity 2000 kg/hr (2 TPH) Drum Diameter 1500 mm – 1800 mm Drum Length 10 – 12 meters Material of Construction Mild Steel / SS304 (Optional) Drive Motor Power 10 HP – 15 HP Air Flow Type Co-Current / Counter-Current Heating Source Biomass Burner / Hot Air Furnace / Diesel / Gas Inlet Moisture 35% – 50% Outlet Moisture ≤ 12% Air Temperature Range 180°C – 350°C Power Requirement 25 – 30 kW Dust Collection Cyclone + Bag Filter (Optional) Control Panel Automatic / Semi-Automatic Country of Origin India Finish Industrial Powder-Coated Finish

Key Features ✅ High Drying Efficiency: Reduces moisture from 50% to below 12% with consistent performance.

✅ Energy-Saving Design: Low fuel consumption due to optimized drum design and air circulation.

✅ Heavy-Duty Construction: Made from thick MS plates with high-temperature-resistant lining.

✅ Continuous Operation: Designed for 24-hour industrial use with low maintenance.

✅ Uniform Drying: Lifting flights ensure even distribution of material across the drum surface.

✅ Multiple Heating Options: Compatible with biomass pellet burner, coal, gas, or diesel furnace.

✅ Compact & Modular Setup: Easy to install and integrate into any existing pellet or feed plant.

✅ Dust-Free Operation: Optional cyclone separator and bag filter system for clean air exhaust.

✅ Temperature Control System: Precise PID control for fuel efficiency and consistent drying.

✅ Made in India – Export Quality: Built to international standards for long-term reliability.

Advantages of FABON Rotary Drum Dryer High Throughput: Continuous operation ensures maximum drying capacity of 2 tons/hour. Uniform Output Quality: Maintains stable moisture content for pelletizing or storage. Reduced Energy Cost: Biomass burner integration lowers operational fuel cost. Versatile Use: Suitable for a variety of materials—sawdust, wood chips, rice husk, and more. Low Maintenance: Simple mechanical design with easily replaceable components.
