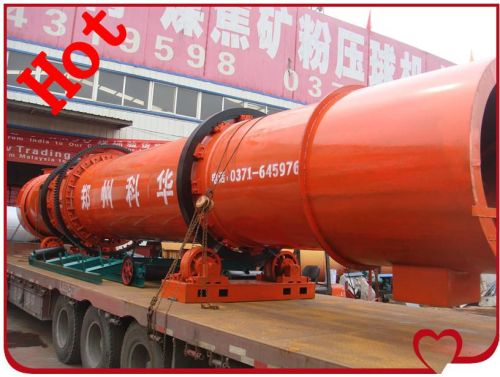

Rotary Dryer

Main features：
1. Adopt multiple combination scatter device:overcome traditional dryer "wind hole" phenomenon, high thermal efficiency, coal consumption reduced about 20%.
2. Apply a variety of combustion furnace: high temperature fluidezed bed, grinding coal powder spraying furnace and artificial add stove.
3.big and small transmission gears adopt pin column replaceable gear, instead of traditional steel casting gear, saving investment cost, and greatly reduce the repair cost and time.
4.adopt centralized control system, which can realize large-scale enterprise microcomputer central control management.
Technical parameter:
model barrel
diameter
(mm) barrel
length
(m) gradient
(°) speed
(r/min) power
(kw) volume
(m³)
khdφ0.6*8 φ600 8 3-5 8 4 2.26
khdφ0.8*10 φ800 10 3-5 7.2 4 5.02
khdφ1.0*10 φ1000 10 3-5 6.73 5.5 7.85
khdφ1.2*12 φ1200 12 3-5 5.8 11 13.31
khdφ1.5*12 φ1500 12 3-5 4.8 15 21.2
khdφ1.8*14 φ1800 14 3-5 3.2 30 48.22
khdφ2.2*18 φ2200 18 3-5 3 37 70.43
khdφ2.4*20 φ2400 20 3-5 2.83 45 90.43
khdφ2.8*24 φ2800 24 3-5 2.59 75 147.8
khdφ3*20 φ3000 20 3-5 1.5-5 55 141.3
khdφ3*25 φ3000 25 3-5 1.5-5 75 176.6
