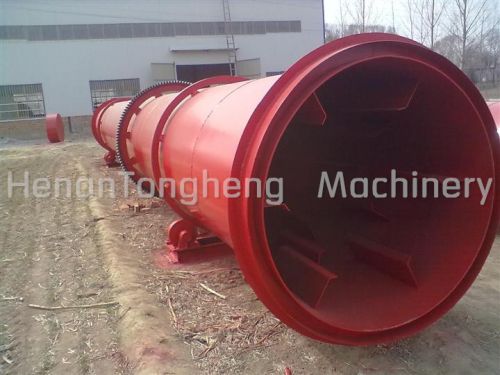

Rotary Dryers, Brand Name : Tongheng, Certification : CE

We are offering
Application
1.The chemical industry, miners, metallurgical and other industries, such as ore, slag, coal, metal powder, clay, diatomaceous earth, kaolin.
2. Agriculture, fodder, fertilizer industry, such as straw, grass, leaves, fish meal, corn sauce, starch dregs, lees, dregs, pomace, soy, bagasse, peat, organic fertilizer, sludge, aquatic product waste, food plant waste, slaughterhouse waste, organic fertilizer, inorganic fertilizer, phosphate fertilizer ammonium sulfate.
3. Drying the special requirements powder and granular materials. Such as various crystals, precipitated calcium carbonate, activated clay, magnetic powder, graphite, inorganic mud, clay, lime slurry, ore slurry, phosphorus slag, aluminum red mud.
4. Requests the low-temperature drying, and the materials which need for large quantities of continuous drying.
Working Priciples
This rotary dryer is mainly composed of rotary part, lifting board, transmission part, support part and seal ring. Dryer is a horizontal direction slightly inclined cylinder, the material is added from a high end, high temperature hot flue gas and the material and flow into the cylinder, with the rotation of the cylinder, the material run to the lower end by gravity. Contact surface Shoveling plate is mounted on the inner wall of the cylinder, it shovel the materials up and down, and increase the contact surface of the material and the airflow, so that to improve the drying rate and to promote material proceed. The dried product collected from the bottom.
Technical Parameters
Model: 2200*12000
Rotation Speed: 2.5rmin
Gradient: 5%
Power: 22kw
Capacity: 6-12th
Weight: 33t
