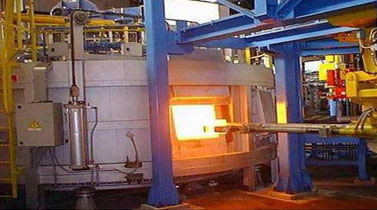

Rotary Hearth Furnace Machine

Indomen has a full range of Rotary Hearth Furnace up to a capacity of 10 MTPH to offer to the Seamless Steel Pipe, Forging Industries, Rolling Mills, Railway Components and power sector. The billets/blooms are placed horizontally on the hearth. Single/double independent hydraulically operated machines or robots by purchaser can be used for charging and discharging of material one at a time on the rotating hearth. Charging machine will pick-up the material from the Charge Roller Table placed at a particular location and place the material through charge door on the hearth at a predetermined place. Simultaneously, the discharge door will also open-up and the discharging machines will pick-up the hot material from the hearth and deliver the material to a discharge roller table. Both charging and discharging doors shall be driven by dedicated electromechanical/hydraulic drive arrangement. Rotating hearth is fitted with adequate number of supporting rollers in two rows and move over rails anchored to the ground. Centering rollers are placed on the inner side of rotating hearth to prevent lateral displacement. Hearth rotation is made through two numbers electromechanical or hydraulic drive units placed at 180 °C apart. Hearth indexing arrangement is provided to stop hearth at stations for charging & discharging simultaneously. The furnaces are either electrically heated or fuel fired with high efficiency burners supported by a full complement of combustion system. To improve fuel efficiency, recuperations for heating combustion air up to 500 °C is provided. For customers requiring even more fuel efficiency, regenerator burners can be offered that can give air preheat of 1000 °C or more for much higher fuel efficiency.
Features:
 Optimum output
 Affordable
 Quality ensured
