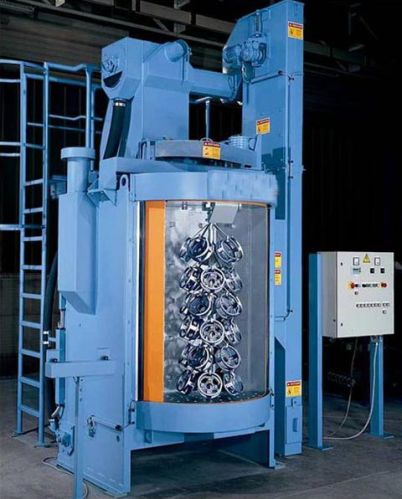

Rotary Hook Type Shot Blasting Machine

Rotary Hook Type Shot Blasting Machine is an efficient shot-blasting machine for cleaning the surface of the aluminum castings, deburring, rust, sand removal without de-shaping the design of work piece. Rotary Hook Type Shot Blasting Machine comes with hooks, and each hook has maximum loading capacity of up to 600kg. Customers can avail Rotary Hook Type Shot Blasting Machine with automation equipment for convenient handling.

The sequence of design and operation : Device without foundation, the cabin is mainly composed of a rotary blast cabin, a blast cabin is divided into two parts, shot blasting unit and abrasive removal unit. Each separating unit is provided with a rotary hook, hook hanging cleaning workpiece. Equipment loading area is open, so that, when the workpiece in a side cabin is shot blast cleaning, can be in another compartment body loading and unloading. Both the cabin rotates to the next to any position, as long as the cabin stops rotating, abrasive flow is cut off. Continuous rotary hook in front, can throw for each shot cycle, identifies 3 different positions, in order to avoid shot dead. abrasive after separation unit to remove impurities to feed to the shot blasting machine.

Structure design characteristics : Cabin with high wear resistance material as the liner. Unique sealing design, to ensure that abrasive will not escape during blast cleaning. The 2 safety switches equipped on the side of loading / unloading position can ensure completely to cut off equipment operation in clamping case . Rear door is convenient for cabin and blast wheels maintenance and repair.
