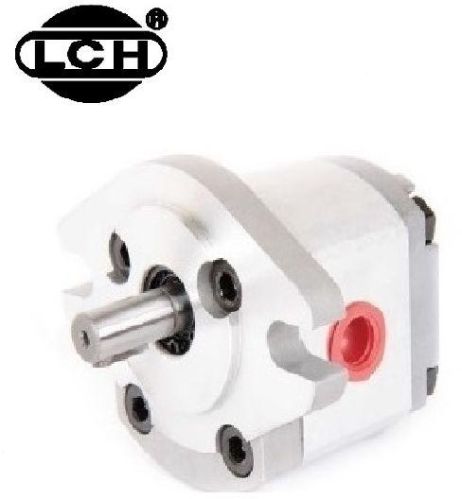

Rotary Kayaba P50 Hydraulic Gear Pump, Brand Name : LCH

rotary kayaba p50 hydraulic gear pump
model numbers:
hgp-1a-f1
hgp-1a-f2
hgp-1a-f3
hgp-1a-f4
hgp-1a-f5
hgp-1a-f6
hgp-1a-f8
specifications:
**port size:
hgp-1a-f1*: in= pt38” out= pt38”
hgp-1a-f2*: in= pt38” out= pt38”
hgp-1a-f3*: in= pt38” out= pt38”
hgp-1a-f4*: in= pt38” out= pt38”
hgp-1a-f5*: in= pt38” out= pt38”
hgp-1a-f6*: in= pt38” out= pt38”
hgp-1a-f8*: in= pt12” out= pt38”
**displacement (ccrev)
hgp-1a-f1*: 1 ccrev
hgp-1a-f2*: 2 ccrev
hgp-1a-f3*: 3 ccrev
hgp-1a-f4*: 4 ccrev
hgp-1a-f5*: 5 ccrev
hgp-1a-f6*: 6 ccrev
hgp-1a-f8*: 7.8 ccrev
**pressure kgfcm2
hgp-1a-f1*: work= 210 max.= 250.
hgp-1a-f2*: work= 210 max.= 250.
hgp-1a-f3*: work= 210 max.= 250.
hgp-1a-f4*: work= 210 max.= 250.
hgp-1a-f5*: work= 210 max.= 250.
hgp-1a-f6*: work= 210 max.= 250.
hgp-1a-f8*: work= 210 max.= 250.
** speed r.p.m.
for all models: rate = 1800 r.p.m.
max:
hgp-1a-f1*: 4500 r.p.m.
hgp-1a-f2*: 4500 r.p.m.
hgp-1a-f3*: 4500 r.p.m.
hgp-1a-f4*: 4000 r.p.m.
hgp-1a-f5*: 3200 r.p.m.
hgp-1a-f6*: 3200 r.p.m.
hgp-1a-f8*: 3200 r.p.m.
min:
hgp-1a-f1*: 1000 r.p.m.
hgp-1a-f2*: 600 r.p.m.
hgp-1a-f3*: 600 r.p.m.
hgp-1a-f4*: 600 r.p.m.
hgp-1a-f5*: 600 r.p.m.
hgp-1a-f6*: 600 r.p.m.
hgp-1a-f8*: 600 r.p.m.
**weight
hgp-1a-f1*: 1.0kg
hgp-1a-f2*: 1.05kg
hgp-1a-f3*: 1.15kg
hgp-1a-f4*: 1.18kg
hgp-1a-f5*: 1.2kg
hgp-1a-f6*: 1.3kg
hgp-1a-f8*: 1.3kg.
