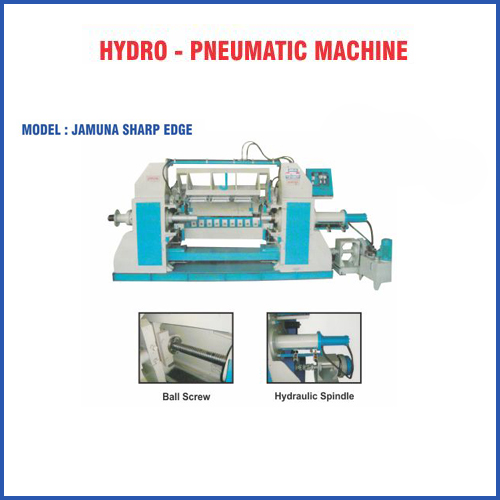

ROTARY LOG PEELING MACHINE

Our Rotary Log Peeling Machine is available in different varieties such as Hydro Pneumatic Machine, Hydro Spindle Pneumatic Machine, and others. These products have been designed with special focus on working length and diameter. It is easy to control. Working speed and net weight of Rotary Log Peeling Machine depends upon the model. Our log peeler is also suitable for curved wood and can even process thin wood of really small diameters.

• Easily strips layer without clamper
• Automatic control
• Thickness is adjustable
• High load setting
• Special roller treatment
• Facilitate double speed cutting

PLUS POINT:
A. Ball bearing feed screw for 20 times more life than gun metel nut.
B. Main spindle drive with hydraulic system, there are no thread in screw and no nut and no chain sprocket for spindle drive
C. All gears are tempered and gried for accurate thickness of core.
D. In this model maint5ained is Zero.
Technical Specification of this Model
Body of Machine : Febricalled from 20mm sheet
Strucher : Machine is fix on the 7 channel Frame
Feed Screw : Made from Special Alloy Steeland Ball Bearing Nut
Spindle : Spindle 110m.m. DIA made fron special steel fitle 4d with Hydraulic Cylinder
Transmission : Through form line chain sprockets.
Hydraulic Cylinder : 75M.M.X300M.M Filled with Germany Spares
Pressure Bar Cylinder : 80M.M.X100M.M. JANATIC Company
Clutch Cylinder : 75M.M.X50M.M. JANATIC Company There is no gear box. There is AC drive system. (PLC Optional)
Main Motor : 30 H.P.1400RPM
Compressor Motors : 30 H.P.1400RPM
Power Pack : Filled with POLYHYDRON VALVES & 5H.P. Motor
Electrical Panel : Filled with L & T or ABB Switches.
Auto Lubrication : 0.25 H.P. SIMRAN Company Pump.
Brake : Important Disc Brake.
Can Peel : 0.6M.M. to 3M.M
Weight : 7 M.T.
Pneumatic Fitting : JANATIC Company
Hydraulic Fitting : POLYHYDRON Company
Gripper : Fix Type Gripper for smaller Log.
