Rotary Table

Designed for smaller milling machines.
Table diameter 100 mm
table is graduated 360 degrees.
Worm gear ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 degrees.
Center height in vertical position: 2-116" (50 mm approx)
hand wheel is graduated in divisions of 10 min & can be set to zero.
Can be mounted both in horizontal & vertical position.

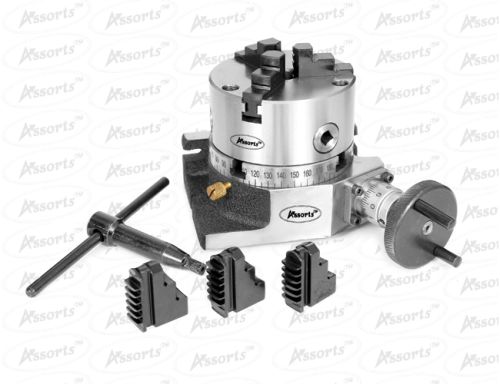

Description of the 100 mm-3 jaw self centering chuck
a high quality 100 mm 3 jaw self centering chuck body made from sg iron & jaws are of tool steel hardened & ground.
A set of reversible jaws is supplied extra.
Supplied with a mounting back plate & fixing tee nuts with screws. (though the picture is not showing the same)
designed to fit our 3 or 4" rotary table with either 3 or 4 slots.
The back plate has been drilled in a manner that it will fit to a 3 slot or a 4 slot rotary table.
The recess of the back plate is machined perfectly to fit the recess of the chuck to avoid any play.
