Rotary Tiller, Power Source : Tractor PTO

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Rotary Tiller has been designed with a middle gear transmission and is PTO driven. Only supreme quality raw materials and components are used in manufacturing the product. All the tillers are quality....

View More Details

Send Enquiry

Company Information

FRD Machinery CO. LTD

Shandong

View Number

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2009

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

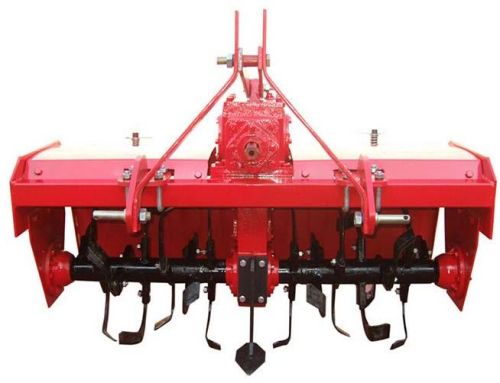

Rotary Tiller has been designed with a middle gear transmission and is PTO driven. Only supreme quality raw materials and components are used in manufacturing the product. All the tillers are quality approved before they are dispatched to the customers. It is suited to dry land and lasts field. They are known to reduce the Labour and save time and money. We are known to handle bulk orders efficiently with the help of our excellent logistics team.

Feature :

3 Point rotary tiller
Middle gear transmission
CE certificate
PTO driven
Match power - 12-90 HP

Product performance :

1 GLN series rotary tiller with side gear transmission, it can be mounted with the tractor 12-120 hp.
We can't see the wheel tracks on the soil after it worked.
The quality of the rotary tiller is good and the function very well.
it is suited to dry land and paddy field. it can save time labour and money etc. strong point

Technical Specifications

Model		1GQN-100	1GQN-115		1GQN-120	1GQN-125	1GQN-140	1GQN-150	1GQN-160	1GQN-180	1GQN-200	1GQN-220	1GQN-250	1GQN-300
Matched power(hp)		42719	15-18		15-18	18-20	20-25	25-30	30-40	50-55	55-75	60-80	75-90	80-90
Working width(cm)		100	115		120	125	140	150	160	180	200	220	250	300
No. of knives		18	18		22	26	30	34	38	42	46	50	58	70
Type of knives		IT225					IT245
Total weight(kg)		200		210	215	220	230	240	251	415	430	445	460	490
Total weight(kg)		192		200	205	210	220	230	240	405	420	435	450	480
O.D.(mm)	(L)	850		900	900	900	900	900	900	1020	1020	1020	1020	1020
	(W)	1050		1310	1350	1450	1600	1740	1880	2056	2396	2636	2816	3256
	(H)	950		1000	1000	1000	1000	1000	1000	1152	1152	1152	1152	1152
Working depth(cm)	field	42596					42724
Working depth(cm)	paddy	42659					14-20
Export axle rotary speed (r/min)		530-730								540	540	540-720		540-720
Knife axle rotary speed (r/min)		180-250								225	226	200	236	240
Walking speed (km/h)		42373								42405
Rate of working depth (%)		≥85
Soil level after worked (cm)		≤5
Vegetation covered rate(%)		≥55
The rate of crushed soil (%)		≥50
Linkage		Standard three-point mounted
