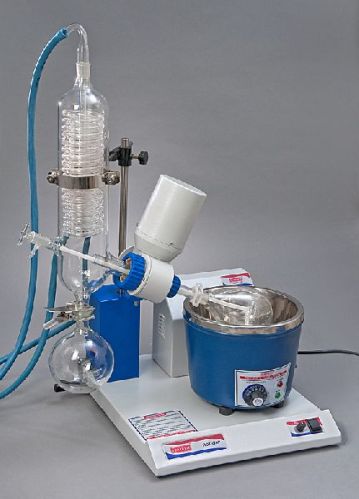

| Rotary Vacuum Evaporator, Rotavap Series Diagonal Condenser, Model PBU-6 This model of evaporator is supplied complete with geared drive unit offering smooth speed control by analog knob, Jack arrangement fitted on base unit for positioning glass assembly, Double walled water bath thermostatically controlled temp., glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800 ml., receiver flask capacity one liter fitted with a ball joint, feeding tube and vapour path tube a complete working unit. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800ml. per shape. |
Â
Â
| R/150/01 | Condenser double coiled with S-35 cup. |
| R/150/03 | Gasket Seal for Vapour path Tube (VITON) |
| R/150/05 | Vapour Path Tube B-24, B-29 |
| R/150/06 | Feed Tube for condenser |
| R/150/07 | Evaporating flask R.B. 1 liter B-24 socket |
| R/150/08 | Receiving flask with S-35 cup (socket) joint capacity 1000 ml. |
| R/150/09 | Evaporating Flask Kjeldhal cap. 800 ml. B-24 |
| R/150/22 | Evaporating Flask Kjeldhal cap. 500 ml. B-24 |
| R/150/24 | Evaporating Flask Kjeldhal cap. 300 ml. B-24 |
| R/150/26 | Evaporating Flask Kjeldhal cap. 100 ml. B-24 |
| R/150/11 | Tension Spring to hold condenser. |
| R/150/13 | Wire Clip to holder vapour tube and boiling flask |
| R/150/15 | Ball joint clip S-35 |
| R/150/32 | Water bath double walled inner SS with Thermostatic temperature control. |
| R/160 | Rotary Vacuum Evaporator, Rotavap Series Diagonal Condenser, Model PBU-6D. This model of evaporator is supplied complete with geared drive unit offering smooth speed control by analog knob, Jack arrangement fitted on base unit for positioning glass assembly, Double walled water bath having Digital temperature indicator cum controller., glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800 ml., receiver flask capacity one liter fitted with a ball joint, feeding tube and vapour path tube a complete working unit. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800ml. per shape. |
| R/160/01 | Condenser double coiled with S-35 cup. |
| R/160/03 | Gasket Seal for Vapour Tube (VITON) |
| R/160/05 | Vapour Path Tube B-24, B-29 |
| R/160/6 | Feed Tube for condenser |
| R/160/07 | Evaporating flask R.B. 1 liter B-24 socket |
| R/160/08 | Receiving flask with S-35 cup (socket) joint capacity 1000 ml. |
| R/160/09 | Evaporating Flask Kjeldhal cap. 800 ml. B-24 |
| R/160/22 | Evaporating Flask Kjeldhal cap. 500 ml. B-24 |
| R/160/24 | Evaporating Flask Kjeldhal cap. 300 ml. B-24 |
| R/160/26 | Evaporating Flask Kjeldhal cap. 100 ml. B-24 |
| R/160/11 | Tension Spring to hold condenser. |
| R/160/13 | Wire Clip to holder vapour tube and boiling flask |
| R/160/15 | Ball joint clip S-35 |
| R/170 | Rotary Vacuum evaporator, Rotavap Series Vertical Condenser, Model PBV-7. This model of evaporator is supplied complete with geared drive unit offering smooth speed control by analog knob, Jack arrangement fitted on base unit for positioning glass assembly, Double walled water bath thermostatically controlled temp., glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800 ml., receiver flask capacity one liter fitted with a ball joint, feeding tube and vapour path tube a complete working unit. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800ml. per shape. |
| R/170/02 | Vertical condenser double coil with two outlets for water circulation. With S-35 Ball at bottom for connecting to receiving flask. Quick fit type joint at top of condenser. Cock for feed tube on one side while the other side will be connected to motor with ring. |
| R/170/03 | Cone Adapter for condenser to Vacuum pump |
| R/170/06 | Vapour Path Tube B-24, B-29 |
| R/170/07 | Gasket Seal for Vapour Tube (VITON) |
| R/170/11 | Feed Tube for condenser trap |
| R/170/13 | Receiving flask with S-35 cup (socket) joint capacity 1000 ml. |
| R/170/15 | Evaporating Flask Kjeldhal cap. 800 ml. B-24 |
| R/170/17 | Evaporating Flask Kjeldhal cap. 500 ml. B-24 |
| R/170/19 | Evaporating Flask Kjeldhal cap. 300 ml. B-24 |
| R/170/21 | Evaporating Flask Kjeldhal cap. 100 ml. B-24 |
| R/170/23 | Tension Spring to hold condenser. |
| R/170/25 | Wire Clip to holder vapour tube and boiling flask |
| R/170/27 | Ball joint clip S-35 |
| R/17032 | Water bath double walled inner SS with Thermostatic temperature control. |
| R/171 | Rotary Vacuum evaporator, Rotavap Series Vertical Condenser, Model PBV-7D. This model of evaporator is supplied complete with geared drive unit offering smooth speed control by analog knob, Jack arrangement fitted on base unit for positioning glass assembly, Double walled water bath having Digital temperature indicator cum controller., glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800 ml., receiver flask capacity one liter fitted with a ball joint, feeding tube and vapour path tube a complete working unit. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800ml. per shape. |
| R/171/02 | Vertical condenser double coil with two outlets for water circulation. With S-35 Ball at bottom for connecting to receiving flask. Quick fit type joint at top of condenser. Cock for feed tube on one side while the other side will be connected to motor with ring. |
| R/171/03 | Cone Adapter for condenser to Vacuum pump |
| R/171/06 | Vapour Path Tube B-24, B-29 |
| R/171/07 | Gasket Seal for Vapour Tube (VITON) |
| R/171/11 | Feed Tube for condenser trap |
| R/171/13 | Receiving flask with S-35 cup (socket) joint capacity 1000 ml. |
| R/171/15 | Evaporating Flask Kjeldhal cap. 800 ml. B-24 |
| R/171/17 | Evaporating Flask Kjeldhal cap. 500 ml. B-24 |
| R/171/19 | Evaporating Flask Kjeldhal cap. 300 ml. B-24 |
| R/171/21 | Evaporating Flask Kjeldhal cap. 100 ml. B-24 |
| R/171/23 | Tension Spring to hold condenser. |
| R/171/25 | Wire Clip to holder vapour tube and boiling flask |
| R/171/27 | Ball joint clip S-35 |
| R/175 | Rotary Vacuum evaporator, Rotavap Series Vertical Condenser, Model PBCT-8. This model of evaporator is supplied complete with geared drive unit offering smooth speed control by analog knob, Jack arrangement fitted on base unit for positioning glass assembly, Double walled water bath thermostatically controlled temp., glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800 ml., receiver flask capacity one liter fitted with a ball joint, feeding tube and vapour path tube a complete working unit. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800ml. per shape. |
| R/175/02 | Cold trap condenser double walled with S-35 Ball at bottom for connecting to receiving flask. Quick fit type joint at top of condenser. Cock for feed tube on one side while the other side will be connected to motor with ring. |
| R/175/06 | Vapour Path Tube B-24, B-29 |
| R/175/07 | Gasket Seal for Vapour Tube (VITON) |
| R/175/11 | Feed Tube for condenser trap |
| R/175/13 | Receiving flask with S-35 cup (socket) joint capacity 1000 ml. |
| R/175/15 | Evaporating Flask Kjeldhal cap. 800 ml. B-24 |
| R/175/17 | Evaporating Flask Kjeldhal cap. 500 ml. B-24 |
| R/175/19 | Evaporating Flask Kjeldhal cap. 300 ml. B-24 |
| R/175/21 | Evaporating Flask Kjeldhal cap. 100 ml. B-24 |
| R/175/23 | Tension Spring to hold condenser. |
| R/175/25 | Wire Clip to holder vapour tube and boiling flask |
| R/175/27 | Ball joint clip S-35 |
| R/175/32 | Water bath double walled inner SS with Thermostatic temperature control. |
| R/178 | Rotary Vacuum evaporator, Rotavap Series Vertical Condenser, Model PBV-7D. This model of evaporator is supplied complete with geared drive unit offering smooth speed control by analog knob, Jack arrangement fitted on base unit for positioning glass assembly, Double walled water bath having Digital temperature indicator cum controller., glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800 ml., receiver flask capacity one liter fitted with a ball joint, feeding tube and vapour path tube a complete working unit. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800ml. per shape. |
| R/178/02 | Cold trap condenser double walled with S-35 Ball at bottom for connecting to receiving flask. Quick fit type joint at top of condenser. Cock for feed tube on one side while the other side will be connected to motor with ring. |
| R/178/06 | Vapour Path Tube B-24, B-29 |
| R/178/07 | Gasket Seal for Vapour Tube (VITON) |
| R/178/11 | Feed Tube for condenser trap |
| R/178/13 | Receiving flask with S-35 cup (socket) joint capacity 1000 ml. |
| R/178/15 | Evaporating Flask Kjeldhal cap. 800 ml. B-24 |
| R/178/17 | Evaporating Flask Kjeldhal cap. 500 ml. B-24 |
| R/178/19 | Evaporating Flask Kjeldhal cap. 300 ml. B-24 |
| R/178/21 | Evaporating Flask Kjeldhal cap. 100 ml. B-24 |
| R/178/23 | Tension Spring to hold condenser. |
| R/178/25 | Wire Clip to holder vapour tube and boiling flask |
| R/178/27 | Ball joint clip S-35 |
| R/180 | Rotary Vacuum Evaporator, Model SUPERVAC (Diagonal Condenser).ALL CONTOLS AT THE PRESS OF A BUTTON. 4 line Alpha Numeric Digital display LCD screen.SIMULATANEOUS display on LCD Screen of R.P.M., Actual Temperature and Set Temperature.MOTORISED LIFT arrangement for glass assembly, Control up to 200mm. Lifting up/ down indication displayed on screen.Geared Dive Unit offers a smooth speed rotation, R.P.M. Control from 20 to 200 R.P.M. On/ off indication for Geared drive unit displayed on screen.Double walled water bath Temperature Control from ambient plus 5°C to 99°C. On/ off indication for Water bath displayed on screen.Glass condenser double coiled with three opening for vacuum and cooling, pear (kjeldhal) shaped evaporating flask capacity 800ml., receiver flask capacity one liter fitted with a ball join, feeding tube and vapour path tube a complete working until. The same unit can be supplied with round bottom one liter capacity evaporating flask instead of 800 ml. pear shape |
