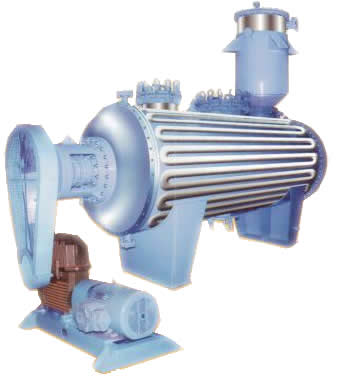

Rotary Vacuum Paddle Dryer  is a jacketed cindrical vessel with a large diameter hollow shaft. Attached to the shaft are hollow paddles provided with specially designed scraper blades, which scrape the entire internal surface of the dryer and continuously move and rotate the material thereby precluding the possibility of material remaining in contact with hot surfaces for protracted periods of time.
The jacket and hollow shaft with paddles can be heated with hot water, steam or any other thermal fluid capable of providing a larger indirect heat trfer area. Cooling can be also be done by cold water, brine or any other refrigerant through the jacket and hollow shaft.
Limpet coil can be provided in lieu of jacket, if liquid heating medium is used. Hard facing of shaft provided in way of gland packing areas of trunnions. Arrangements for nitrogen purging provided. Bag cleaning arrangement with pulsation by nitrogen jet injector provided.
Heavy duty trunnions and bearings support the hollow shaft and the drive is provided by me of a motor through reduction gears chain and sprocket.
Provision has also been made to insert four breaker bars inside the dryer shell for particle size reduction.
In special cases, stationery scraper blade can be provided to scrape the rotating agitator, for highly sticky material.
Silent features:  Ideal for temperature sensitive materials.
Almost 100% recovery of solvents.  Low energy consumption.
CAP:- 10 LTRS TO 30000 LTRS
MOC MS,SS 304,SS316,SS316L
