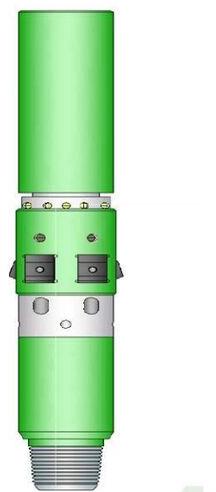

Wellcare Rotating Packer Setting Tool

For India and Iran Only
WELLCARE Rotating Packer Setting Tool is designed to apply set down weight to Compression set liner top packers (WC-TSNP, WC-MLTP-S2, WC-LTP-S2, etc.). A set of spring loaded dogs are used to transfer the set down weight from the drill string to the Tie Back Receptacle on the liner Top packer. A bearing assembly in the RPST allows the drill pipe to be rotated while slacking off weight to the liner top. The rotation of the drill pipe will break the static friction between the drill pipe and casing and allow additional weight to be transferred to the liner top. This is especially useful when running liners in highly deviated and dog-leg wells. Applied load value for setting of Liner Top Packer indication will be observed at the rig floor once the tool has been pulled out.
