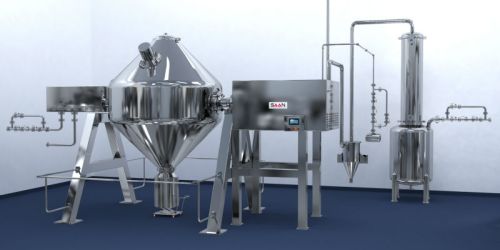

Roto Cone Dryer, For Pharmaceutical

ROTOCONE VACUUM DRYER, to some extent, replacing the agitated rotary Vacuum Dryer. It has two opposing jacketed cones on a common jacketed short cylindrical base.When the cones are in a vertical position the dryer can be rapidly discharged.The unit is provided with supporting trunnions running on suitable bearings.The trunnions are hallowing. A vacuum Connection is made through one of the trunnions.The connection ​pipe is turned upwards in the cone and is fitted with a dust filter at its end. Inlet and outlet pipes pass through the outer trunnion for the supply of suitable heating medium to the jacket. A special design of a rotating valve is used for this purpose. One of the trunnions is driven through a reduction ​gear and chain drive.Rotation speed will range from 12 rpm for small units to large commercial ​installations.The horse power is vary between 0.5 and 15. The base cylinder diameter is about 1 m to 3m.
