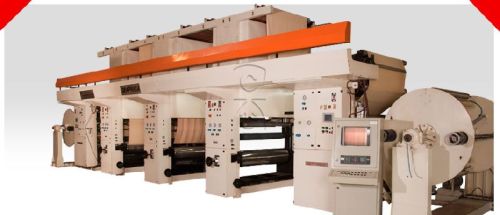

Rotogravure Printing Machine

GRAPHICA 3000 series is a newly developed machine in the rotogravure printing machine category. It is a product developed with the help of the continous researce and development. GRAPHICA 3000 is the most advanced rotogravure printing machine developde by the C.T.Trivedi& Co. It not only holds asthetic value but also delivers straightforward brilliant solutions which ensure high optimisation and dependability and together with end product quality and versality, meeting the demand of a fast evolving business.

• Video scope
• Automatic registration control system
• 7 Drive with turret and auto splicing
• Ink circulation system

Heavy duty unwind turret station complete for paper roll with auto splicing for automatic reel change over without stopping the machine and controlled by PLC. Pneumatic air shaft and safety chucks provided for paper roll. Flying splice with top & bottom pneumatically operated splice arm with bump roll and cutter blade assembly
Heavy duty rewind turret station complete for paper roll with auto splicing for automatic reel change over without stopping the machine and controlled by PLC. Pneumatic air shaft and safety chucks provided for paper roll.
Flying splice with top & bottom pneumatically operated splice arm with bump roll and cutter blade assembly. Automatic web guiding system proveded at rewind station.
Minimum 800 mm dia. printing cylinder to 2700 mm dia. max. can fit in the machine. Heavy duty special type shaft and special type of pneumatically operated rubber roll pressure assembly.
