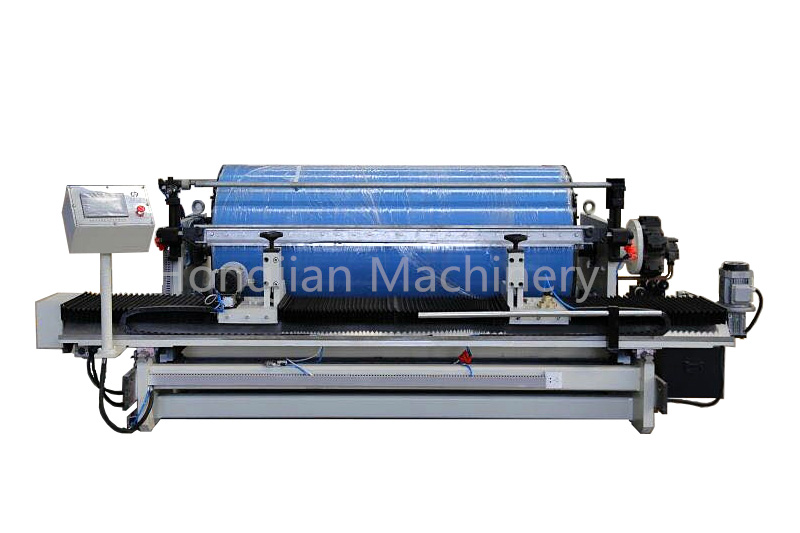

Rotogravure Proofing Machine Gravure Cylinder Proofing Printing Cylinder Proofer Proof Press

₹ 18 Lakh - ₹ 45 Lakh / Set

MOQ1 Set(s)
Supply TypeManufacturer
Preferred Buyer Location All over the world

HJ-DYJ proofing machine is especially designed for checking the quality of a newly made gravure cylinder before assembling it into the production line. It is equipped with cylinder pneumatic....

Company Information

Yuncheng Hongjian Machinery Manufacturing Company Limited

Member Since 5 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

HJ-DYJ proofing machine is especially designed for checking the quality of a newly made gravure cylinder before assembling it into the production line. It is equipped with cylinder pneumatic clamping, clockwise or counter-clockwise rotation, rubber roller positioning and movement pneumatic control, and also blade lifting, pressure and angle adjustment system, photo focusing lens, 14 inch monitor, fine tuning of cylinder position so as to guarantee satisfactory printing and precise registration.
Main Technical Parameters
Press roller diameter: Φ500
Rubber coating width: 1400mm
Rubber coating thickness: 3mm
Max. printing width: 1400mm
Cylinder length: 420-1400mm
Cylinder diameter: 115-350mm
Printing speed: 7-40m/min
Printing press: Pneumatic cylinder pressure 3-4 kg/cm2
Scraper adjustment: Manual adjustment
Angle adjustment: Manual adjustment
Drive power: 3kw, 120-1200 rpm
Power source: 3-phase AC 380v, 50Hz
Pneumatic source: Pressed air 7kg/cm2, flux 0.3m3
Customer Responsibility: Air compressor
Dimension ( L x W x H ): 3180 x 1500 x 1200 mm
Weight: 4200 kg
Power Supply: 4 kw
