Round Baler

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

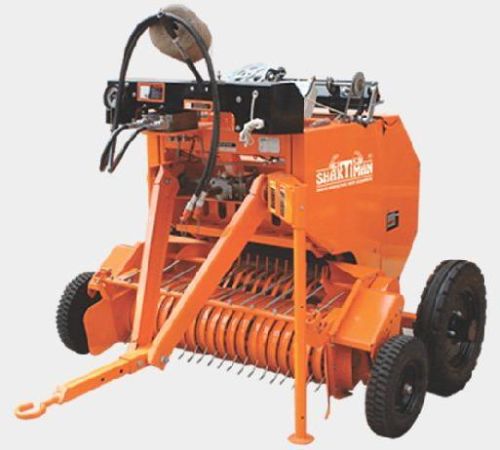

SHAKTIMAN Round Baler is a small and compact machine. Low ownership value and low maintenance make this product very profitable and economically viable even for smaller farmers. Advantages Small & Compact machine – suitable for small fields Easy to operate even by unskilled persons Suitable for lower HP tractors Bales make handling of Hay easy, saves labor cost Wider pickup helps in making bales faster 17 – 22 kg bales makes manual handling possible No need of Bale handlers

View More Details

Send Enquiry

Company Information

TIRTH AGRO TECHNOLOGY PVT. LTD.

Gondal, Rajkot, Gujarat

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 24AABCT6282F1ZE

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MODEL	SRB – 60
Dimensions & Weights
Overall Length x Width x Height (mm / inch)	2350 x 1780 x 1515 / 92.5 x 70.1 x 59.7
Ground Clearance (Axle Height) (mm / inch)	337 / 13.3
Tyre Size
Axle Tyre Size	5.2-14, 6 Ply
Pick-up Tyre Size	4-8, 6 Ply
Tractor Requirement
Horsepower (HP/Kw) & PTO Speed (rpm)	25/19 (minimum) & 540
Hitching System	Draw bar Hitch
Bale Chamber
Type	Chain Driven Pressure Rollers Rotating on Sealed Bearing at Ends
No. of Roller	19
Roller Dia. X Length (mm / inch)	93 x 622 / 3.7 x 24.5
Bale Chamber Dia x Width (mm / inch)	595 x 633 / 23.4 x 25
Bale Size
Bale Dia x Width (mm / inch)	600 x 635 / 23.6 x 25
Working Capacity (Bales/hr))	50*
Bale Weight (Kg/lbs)	17 to 22 / 37 to 49
Baler Weight	700 Kg
Pick up System
Pick up Type	Fully Floating, Cylindrical Drum with Spring Tines
Tine Bar	4
No. of Tines	40
Binding (Twine) System
Binding Activation	Manual
Twine Recommended	Sisal or Polypropylene
