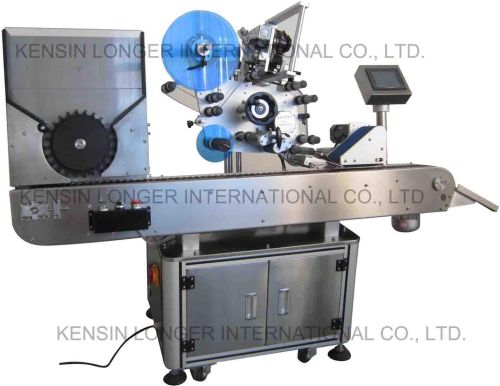

Contact Supplierwe offer Automatic Horizontal Round Bottle Labeling Machine
Model: KL21500
Application
◆ application label:Adhesive labels, adhesive film, electronic supervision
code, bar code, etc.
◆ application product:request for circumferential surface or a small conical
surface labeling tag or film on small products.
◆ Application industry: widely used in the electronics, hardware, plastic
rubber, chemical etc.
◆ Application case: glue bottle labeling, oral liquid bottle labeling, pen
labeling, lipstick labeling etc.
Specification:
Model KL21500 (round bottle labeling)
Label length 20-100mm
Label width 15-120mm
Application product outer diameter Φ10mm-Φ25mm
Precision ±1mm
Labeling speed 100-250pcsmin(step) 19mmin(step)
150-400pcsmin(servo) 25mmin(servo)
Conveyor speed 5-19mmin(step); 5-25mmin(servo)
Label paper core outer diameter ≤Φ280mm
Label paper core inner diameter Φ76mm
Power 220V 50Hz 1020W(step) 1470W(servo)
Weight 200kg
Dimension 2050x650x1470mm
