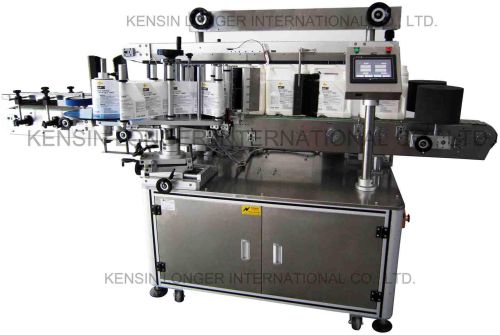

Round Bottle Labeling Machine, Brand Name : LONGER

we offer Automatic Flat Round Bottle Labeling Machine
Model: KL21600
Application
◆ application label：Adhesive labels, adhesive film, electronic supervision
code, bar code, etc.
◆ application product：request for side plane, side weeping surface,
circumferential surface labeling tag or film onl products.
◆ Application industry: widely used in the cosmetics, daily products,
pharmacy, electronics, hardware, plastic rubber etc.
◆ Application case: Head & Shoulders Shampoo flat bottle labeling, Shell
Lubricants flat bottle labeling, white spirits bottle labeling etc.
Specification:
Model KL21600 (flat round bottle)
Label length 20-200mm
Label width 20-170mm
Application product size(Flat bottle) L30mm-250mm(conveying direction);
W30mm-100mm(conveying width)
H 60mm-280mm
Application product size(Round bottle) Φ30mm-Φ100mm H 60mm-280mm
Application product outer diameter Φ45mm-Φ100mm
Precision ±1mm
Labeling speed 30-160pcsmin(step) 5-19mmin(step)
50-200pcsmin(servo) 5-40mmin(servo)
Conveyor speed 18mmin
Label paper core outer diameter ≤Φ280mm
Label paper core inner diameter Φ76mm
Power 220V 50Hz 1220W(step) 1720W(servo)
Weight 330kg
Dimension 3000x1450x1600mm
