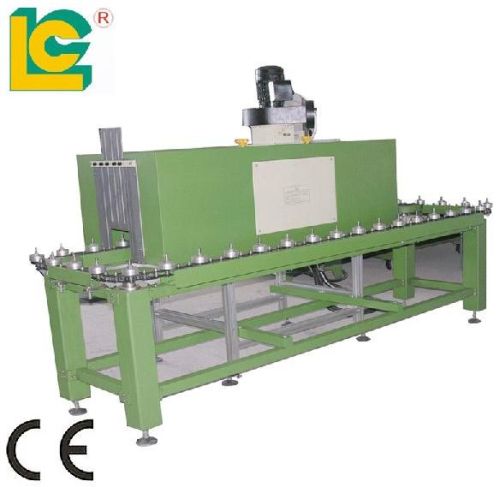

ROUND Bottle UV Curing Machine SD-300, Power : 5KW

Product name

ROUND Bottle UV Curing Machine

Model No

SD-300

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Features

1 .UV drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate

Parameter

1.Max UV curing round bottle high :320mm
2.Max UV curing Products width  :  400mm
3.UV Curing bottle diameter : 12-60mm
4. Curing size of work-piece: Cylinder products :320X400mm
5.Conveyor speed:0~10m/min ;
6.(United Kingdom)UV lamp power:4KW
7. UV Drying products speed：1800~3000PCS/HR
8.Total power:5KW
9.Machine dimension: L:2200mm W:600mm H:1700mm

Usage

Bottle, Barrel, Bucket, Pail, Tub, Commode

customer

USA, UK, Germany, Spain, South Africa,Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term

 100% T/T in advance(negotiation)
