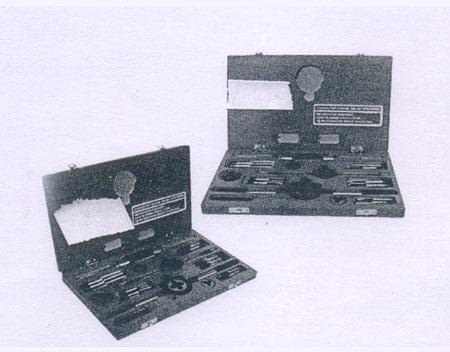

Round Die Sets

MaterialMetal
ApplicationDie Cutting
FeatureReliable and Durable
Number Of FlowerAdjustable
ShapeRound
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

Number Of FlowerAdjustable
MaterialMetal
ApplicationDie Cutting
FeatureReliable and Durable
ShapeRound

We are offering round die sets.we also provide our clients with the best quality of round die sets that are available in different assortments. The adjustable round die sets are available at the most affordable price and offers optimal satisfaction to our clients. We are also regarded as one of the potent solid round die sets manufacturers in india.

BSW BSF UNF UNC

Set No	Range of Sizes	Round Die Handle /outer Diameter (13/16 Inch)	Round Die Handle /outer Diameter (1 Inch)	Round Die Handle /outer Diameter (1 1/2 Inch)	Round Die Handle /outer Diameter (2 Inch)	Tap Handle (Inch)	No of Sizes
201	1/16,3/32,1/8,5/32,3/16,7/32 1/4 BSW	1/16 to 1/4	-	-	-	1/4	7
203	1/8,5/32,3/16,7/32,1/4 BSW	1/8 to 1/4	-	-	-	1/4	5
205	1/8,5/32,3/16,7/32,1/2 BSW	-	1/4 to 3/8	7/16 to 1/2	-	1/2	5
207	1/8,5/32,3/16,7/32,1/2 BSF	-	1/4 to 3/8	7/16 to 1/2		1/2	5
209	1/8,5/32,3/16,7/32,1/2 UNF	-	1/4 to 3/8	7/16 to 1/2	-	1/2	5
210	1/8,5/32,3/16,7/32,1/2 UNC	-	1/4 to 3/8	7/16 to 1/2	-	1/2	5
211	1/4,5/16,3/8,7/16,1/2,5/8 3/4 BSW	-	1/4 to 3/8	7/16 to 3/4	-	3/4	7
213	1/4,5/16,3/8,7/16,1/2,5/8 3/4 BSF	-	1/4 to 3/8	7/16 to 3/4	-	3/4	7
215	1/4,5/16,3/8,7/16,1/2,5/8 3/4 UNF	-	1/4 to 3/8	7/16 to 3/4	-	3/4	7
216	1/4,5/16,3/8,7/16,1/2,5/8 3/4 UNC	-	1/4 to 3/8	7/16 to 3/4	-	3/4	7
217	1/4,5/16,3/8, 7/16, 1/2, 5/8 3/4,7/8,1 BSW	-	1/4 to 3/8	7/16 to 3/4	7/8 to 1	1/2 & 1	9
219	1/4,5/16,3/8, 7/16, 1/2, 5/8 3/4,7/8,1 BSF	-	1/4 to 3/8	7/16 to 3/4	7/8 to 1	1/2 & 1	9
221	1/4,5/16,3/8, 7/16, 1/2, 5/8 3/4,7/8,1 UNF	-	1/4 to 3/8	7/16 to 3/4	7/8 to 1	1/2 & 1	9
222	1/4,5/16,3/8, 7/16, 1/2, 5/8 3/4,7/8,1 UNC	-	1/4 to 3/8	7/16 to 3/4	7/8 to 1	1/2 & 1	9
