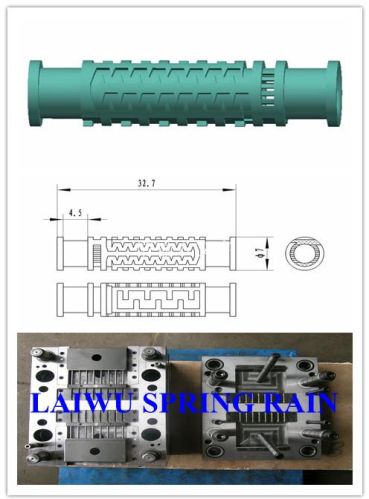

Round Dripper Mould

We are offering round dripper mould 1. Mould model:cy-c-r6-16
2.mould overall dimensions:350mm×270mm×270mm
3.standard mould frame:2527di a50 b40(shanghai lkm brand)
4.standard mould core :4×69(japan punch brand)
5.mould cavity insert material:s136(sweden assab brand)
6.mould core material:skd61(japan daido brand)
7.core-pulling structure:slider angle pin、slider core-pulling(guide wear-resistant)
8.ingate sleeve:10×60
9.cooling nozzle:m10(brass)
10.return spring:30×100
11.cavities quantity:16 cavities(japan daido brand)
12.gate method:submarine gate(automatic casting break)
13.ejector method:biscuit ejected once(made sure the drippers fall off automatically)
14.cooling method:water recycled cooling
15.runner model:cold runner
16.material-in method:balanced-uniform feed in
17.life span:2 million times
18.tolerance:cv≤5%(dripper’s water flow tolerance)
19.injection machine needed:locking pressure＞100t
20.locating ring:100mm
