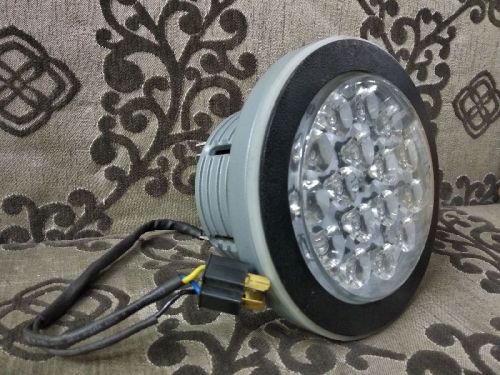

Round LED Headlight

₹ 1,500 - ₹ 3,000 / Piece

MOQ10 Piece(s)
Frequency50Hz-60Hz
Phase typeSingle phase
Input wire3 Core (Red Phase, Black Neutral, Green Ground)
Internal wiringTeflon
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 10 Years
Nature of Business Retailer
GST No. 07AAACO1102E1Z9

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Frequency50Hz-60Hz
Voltage Range110V DC/ 24V DC
Input wire3 Core (Red Phase, Black Neutral, Green Ground)
PF>0.95
Storage Temperature-25°C ~ +65°C(Best 25°C)
Internal wiringTeflon
THD<15%
Illuminance DesignLED + Lenses
Phase typeSingle phase
Efficiency>85%
ApplicationsTrains etc.

Unique Features : Designed and die casted with high class LM-06 grade aluminium supported with all SS 304 grade accessories, toughened glass and equipped with LM 80 certified LEDs and electronic component to perform and give best possible results.
Features:

High voltage protection
High beams Low beam
Over heat protection
Surge protection 4KV
Awarded product
Unique Design

Housing Specification

Body Material	Aluminum
Ingress Protection	IP-65
Cover Toughened Glass	Gasket Silicon
Accessories	Stainless Steel
Paint	Powder Coating
Mounting	On 4 screws
Power Cord	0.75mm2 triple shield wire
Certificate	CE, RoHS, BIS, FCC, BEE

Lighting Specifications

Available wattages	15 watts - 50 watts
No. of LEDs	Optional
Lumens Output (Datasheet)	145 lumens/Watts
Color Temperature	2800~6500k(optional)
Beam Angle	120°
CRI	>80 Ra
Operating Temp.	-40°C to 60°C
Life Span	>50000H
