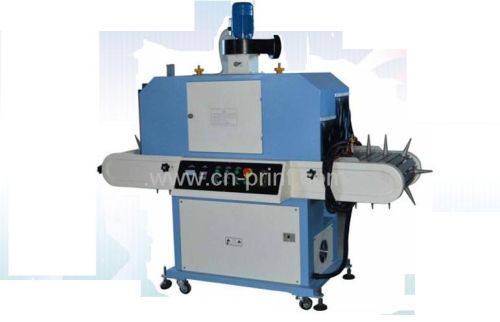

Round/Plane Surface UV Drying Machinery LC-UV4000S2

Product name

Round/Plane Surface UV Drying Machinery

Model No

LC-UV4000S2

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

LC-UV4000S2 UV Curing  machine is mainly used for the curing of printed UV ink on various surfaces such as bottles and cylindrical articles. By adjusting its lighting angle, it also can be used in the UV Ink printing cure of flat substrate， Stainless steel conveyor to resist High Temperature. Step-less speed adjustment to match with different bottles. Suitable for bottles made by plastic, Metal, Glass ETC.

Advantage

1 .UV drying for round  bottle and  plane products.
2. Cylinder products increased the effect of light -
3. UV Drying of products according to size, material, adjust the speed conveyor belt
4. Ventilation system installed at the top, so as to extend lamp life
5. A closed-end structure
6. Aesthetic appearance, apply a wide range, solid-effective
7. Reliable, safe and easy to operate

Parameter

1.Max UV curing round bottle  high :320mm
2.Max UV curing Products width  :  400mm
3.UV Curing  bottle diameter : 12-24mm
4.Curing size of workpiece: Cylinder  products :320X400mm
5.Conveyor speed:0~10m/min ;
6.(United Kingdom)UV lamp power:4KW
7.UV Drying products  speed：1800~3000PCS/HR
8.Total power:5KW
9.Machine dimension: L:2000mm W:800mm H:1500mm

Usage

Bottle printing UV INK ,Plane products printing UV ink

Free fittings

customer

USA, UK, Germany, Spain, South Africa,

Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term

 100% T/T in advance(negotiation)
