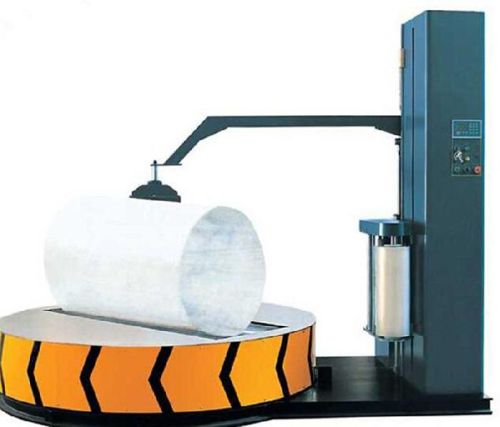

Contact Supplier1. designed for packing rolls of paper, film, dipped tire cord fabric and similar materials manufactured in reels, reel axial wrapping across the cylindrical diameter then along the longitudinal axis.
2. touch screen, plc easy operation control; pre-stretch system up to 250% (customized); wrap times can be preset.
3. stable performance, working life 10 years, quality guarantee 2 years.
european standard design and manufacture, same quality, but chinese market price; pass ce certificate.
4. accept customer�s design order, satisfy customer�s different requirements, install pneumatocyst reel ejection system or auto cut & grab film after wrap finished.
roll diameter
600-1500mm
roll width
500-1600mm
roll weight(max.)
2000kg
packing efficiency
20-30 rolls hour
dia.of turntable
2000mm
turntable speed
3-12rpm
turntable height
460mm
power supply
2.0kwac380v
machine weight
1080kg
dia.of roller
150mm
roller center distance
420mm
machine dimension(mm)
2895(l)x2000(w)x2300(h)
air consume (if have reel ejection system)
1000mlmin
