Routing Switch

We offer routing switch.

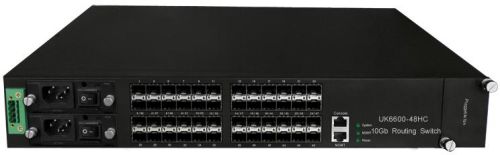

10gb routing switch uk6600-48hc, based on high-performance asic chip technology, with the modular structure design, provides 48 10gb optical ports, 1 1g electrical port, and 1 console port, having a capability of multilayer switching and wire-speed routing forwarding. At the same time, this product can provide a complete ipv4/ipv6 routing, including tunnel and ip multicast. The user can set the various functions of switches through the web, snmp etc. Uk6600-48hc also supports l2 and l3 vpn, dos defense, static routing, rip, ospf, bgp, pim-sm, pim-dm, dvmrp, nat, qos, rstp, mstp, vlan, port security, storm suppression, acl access control and other functions, very suitable for the aggregation application of large-scale network and the core application of medium and small-sized network.
product features:
1 . High performance
(1) with 980g backplane bandwidth(2) hardware routing, wire-speed l3 switching packet forwarding rate up to 714.24mpps
(3) can be deployed in the core of man, and provides several final 1 km technology
2 . Safety
(1) provide dos, distributed denial of service, deception and virus defense(2) support ieee802.1x, provide port-based user authentication, network shield, safety control, and strategy control technology(3) restrict maximum number of connected hosts port, with multi-channel ethernet interface binding, increasing bandwidth and system redundancy(4) powerful acl, support for l2-l4 layer data filtering(5) support qinq function(6) strategy control list, flow regulation
3 . Easy to use and maintain
(1) use clustering technology, support multiple device stack, with a unified ip address to carry on centralized management to save address resources(2) a variety ways of management via web, snmp etc.(3) support xmodem protocol, can be used to upgrade software and bootrom by tftp/zmodem (4) support dhcp server and relay functions, dynamic allocation of ip address(5) support sfp+, also downward compatible xfp(6) provide redundant power supply, fast failover and fast connection, greatly increasing system reliability
4. Powerful flow and broadcast management
(1) automatically detect and suppress broadcast storm, support for igmp packet detection, effectively restrict broadcast packets flooding(2) support full duplex mode and half duplex mode flow control(3) support ethernet interface 1m step rate limit(4) advanced buffer management, support 802.1p protocol, each port 8 transmit queues mapping 8 priority of 802.1p(5) support ip multicast and qos
5. Kinds of routing strategy
(1) support static routing(2) support rip v1/v2, ospfv2, bgpv4 and other dynamic routing protocol(3) support pim-sm, pim-dm, dvmrp and other multicast routing protocol(4) mpls-based exchange routing and ecmp-supported routing balanced loading
product technical parameters:
product model uk6600-48hc
basic characteristics
fixed port 48 10gb optical ports, 1 1g electrical port, and 1 console port
the backplane bandwidth 980gbps
packet forwarding rate 714.24mpps
processor risc 2.5ghz
flash memory capacity 32mb
the memory capacity 256mb, max. 512mb
address table 32k
queue buffer 64mb
product characteristics
spanning tree support stp, rstp, mstpsupport pvst/pvst+
vlan support port-based vlansupport mac-based vlansupport 802.1q labeled vlansupport for super vlansupport for private vlansupport for the gvrp dynamic vlan configurationsupport qinq and flexible qinqsupport for voice vlan
flow control standard-based ieee 802.3x flow control using ieee 802.1qbb priority control flow support car function
broadcast control suppress broadcast storms, reaches a critical point to stop sending
multicast control igmp snooping multicast packet automatically monitoring
multicast routing igmp v1/v2/v3, mldv2 pim-sm, olink&pim-dmdvmrp (distance vector multicast routing protocol)gmrp (multicast dynamic registration protocol)
port binding each set of up to 8, while supporting128 grouplacp dynamic or static aggregation
port mirroring support flow classification-based mirroring support port mirroring
stacked the hard stack 16, soft stack 32
using a unified ip address to carry on centralized management to save address resources
routing management static routingrip v1/v2, ospfv2, beigrp (compatible with cisco eigrp), bgpv4, isis, bgpanti-virus intelligent routing function
strategy routing support ip-based strategy routing
the proxy function support proxy arp, dns proxy
redundancy backup support for vrrp, hsrp hot standby router protocol
characteristics of dhcp dhcp server, dhcp client and support dhcp relay
function of nat support the static or dynamic nat address translation function
safety characteristics ieee 802.1x port certification, pki certificationport security (port security) function
hardware support for ip acl acl acl, mac, vlanhardware support for port-based user ip+mac+vlan id+ user account a variety of factors bundlingsupport ip source guardsupport web interface user authenticationremote radius, tacacs+ certificationuser classification management and password protection net shield technologysafety control technologypolicy control list
quality of service ieee 802.1qau congestion mechanismeach port 8 send queue mapping 802.1p 8 prioritywred, wfq, sp and fifo queue scheduling algorithmbest-effort servicedifferentiated servicestrict priorityweighted round robinfirst come first servedtos to markrts
network management snmp v1/v2/v3rmon (1,2,3,9 group)telnetweb interfacesupport for cluster managementsupport sshsupport for pdp (compatible with cisco cdp.)to support the fan, temperature, system log, hierarchical alarm
physical characteristics
appearance size 442mm × 316mm × 66mm
power characteristic ac 110-240v adaptive, 47-63hz, 1a/230v, rps power supply hot backup
power max. 200w
indicator power indication, system instruction, connecting / transceiver instructions
environment humidity / temperature 0-50 ℃ operation,-40-70 ℃ preservation,0-90% no condensation
