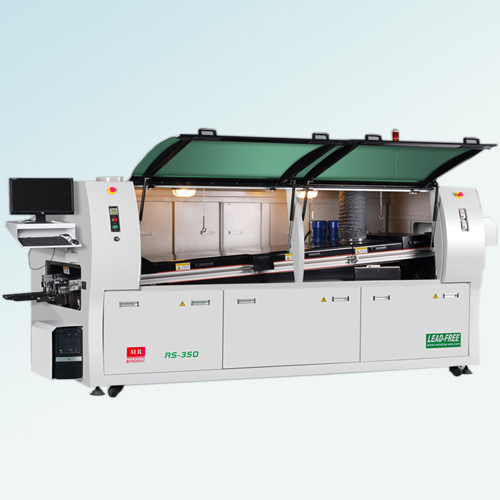

Rs-350 Medium Size Lead Free Smt Wave Solder

We are offering wave solder machine dimension:l*w*h(mm) 3200 x 1200 x 1700mm
weight(kg) approx.2100kg
power supply 3p5w,380220v 50hz 63a
startup power (kw) 25kw
operation power consumption 8kw
control system pc+plc
spray method by motor
spray pressure 0.25mpa--0.4mpa
flux flow 10--100mlmin
exhaust methed up & down exhaust
exhaust ducting diameter φ200mm
control mode pid + ssr
preheating zoon number 3
preheating length 1500mm
preheating temp. room temperature-300℃
pcb width (l x w)(mm) max.280mm
conveyor direction l to r; r to l
conveyor speed(mmmin) 0-2000
flux fill in by manual
component height(mm) top 120(option 160) bottom 15
conveyor width control manual
solder pot style motor drive
solder pot material full titanium
heater power 380vac 8kw
solder pot temperature 300℃
solder pot capacity lead-free 300kg
cooling method forced airairchiller(option)
finger cleaning system brush.
