RS Series Switching Systems

RS MULTIPLEXERS
These pre-wired chassis hold RS Switch Modules built with
D9, D15 or D25 style connectors and switch 9, 15 or 25 wires.

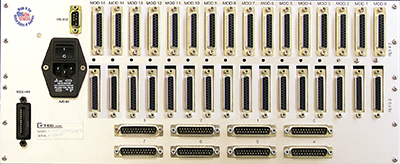

RS16 Mainframe accepts up to 16 of the RS Modules as a
16x1 Multiplexer.
RS16-E Expansion Chassis may be used with a MESA controller
to build multiple chassis multiplexers up to 256x1, depending
on bandpass restrictions.
RSM MATRICES
These Matrices are made up of RSM Mainframes pre-wired
in the requested Matrix configurations and holding up to
16 of the RSM Switch Modules. Switch Modules are available
that switch either 9, 15 or 25 wires to D9, D15 or D25
connectors.
RSM SWITCH MODULES
These Switch Modules are available in two basic configurations.
These modules switch either 9, 15 or 25 wires to D9.D15 or
D25 connectors.
RSM2(1x4) Module has two separate 1x4 multiwire matrix
configurations.
RSM1x8 Module has one 1x8 multiwire matrix configuration.
RSM MAINFRAMES
These Mainframes are available in three basic configurations.
RSM16x8 Mainframe is pre-wired to hold sixteen of the
RSM1x8 Switch Modules in a 16x8 Matrix configuration.
RSM32x4 Mainframe is pre-wired for sixteen of the RSM2(1x4)
Switch Modules in a 32x4 Matrix configuration.
RSM2(16x4) Mainframe is pre-wired for sixteen of the
RSM2(1x4) Switch Modules as two separate 16x4 Matrix
configurations.
BULLETIN
RS-6-2015
RS-1
WARRANTY
CYTEC Corp. warrants that all products are free from defects
in workmanship and materials for a period of 5 years. Relays
are guaranteed for their rated operations when used within
their published voltage, current and power specifications.
RS Switch Modules
RS Switch modules are available as 9, 15 or 25 wire
versions with D9, D15 or D25 connectors. All wires are
switched in unison using Type A armature relays suited
for analog or digital data. The modules switch the signals
through the system as a 1 to 1 connection and act exactly
like a piece of cable. No impedance matching necessary.
