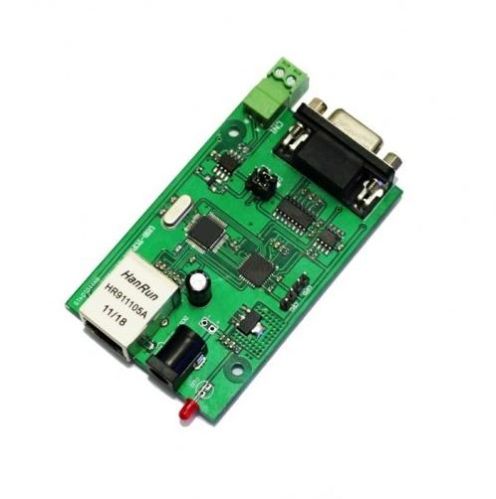

RS232 RS485 Serial To TCP/IP Ethernet Server Module Converter

Features:
1.Auto detected 10/100M High speed ethernet
2.support RS232 and RS485 interface, choose by jumper
3.AUTO MDI/MDIX,Use crossover cable or parallel cable connection;
4.Bandrate RS232 300 ~ 256000 bps, RS485, 300 ~ 115200 bps
5.Work mode: TCP Server, TCP Client, UDP mode, UDP Server mode;
6.Support for virtual serial port mode
7.Work mode and ip and port can be set easily;
8.Free setup software and setup Agreement available.
9.Auto connect when in tcp mode, take a Safe and reliable link all the time
10.Supply demo code for TCPIP programm , and can support you to do it.
11.Agreement: ETHERNET、ARP、IP、UDP、TCP;
12.Power: 5V DC.
13.Size (L×W×H): 80×50×13.6(mm).
14.Operating temperature: -25~75°C.
15.Preservation: -40~85°C, 5~95%RH.
16.RS232 RS485 Serial to Ethernet network module, the product positioning: the use of embedded customers the products and installation to customers within the product casing, positioning holes on the board.
