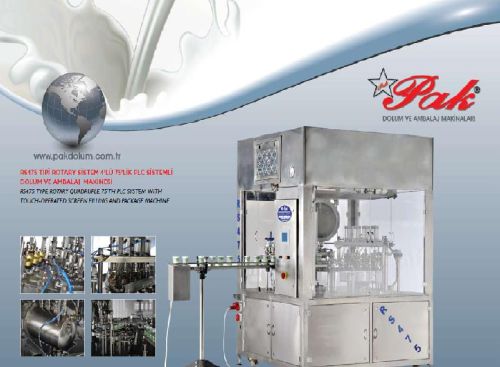

RS475 Pakdolum Filling Sealing Capping Bottling Packaging Machines

TYPE : RS 475 – PLC
BOWL HANDLING SYSTEM : AUTOMATIC BY PNEUMATIC SYSTEM
UV LAMP SYSTEM : UV FIELD ONTO BOWL
PRODUCT TANK : STAINLESS STEEL. WITH ROTARY, ACTUATOR, BUTTERFLY
VALVE, CHIP WASHING SYSTEM
FILLING SYSTEM : FLOWMETER SYSTEM
FILLING GRAMMAGE : 80 – 250 GR
CAPACITY : 5000-5500 BOWL/HOUR (APPROXIMATELY)
GAS SPRAYING SYSTEM : NITROGEN SPRAYING AFTER FILLING
ADHESION AGENT : ALUMINIUM FOIL TRUNCATED
ADHESION AGENT PLACING : AUTOMATIC BY PNEUMATIC SYSTEM
ADHESION SYSTEM : HOT SEALING (160 – 180 °C)
FINISHED PRODUCT CONVEYOR : POLYURATHANE-STAINLESS STEEL- SINGLE LINE OUT
(FITTED TO INK JET DATING SYSTEM)
HEPA FILTERING SYSTEM : WITH APPARATUS FOR GENERATING STERILE AIR FITTED TO
MACHINE (500-1000 M3/H CAPACITY)
PROTECTION FRAME : STAINLESS STEEL/ PLEXY GLASS (WITH SECURITY SWITCH)
ELECTRICAL DEMAND : 380 V, 3 PHAZE, 50 HZ
PRESSURED AIR DEMAND ; 6 BAR – MAX 900 L/MIN
ELECTRICITY CONSUMPTION : MAX 3 KW – 380 V – 50 HZ
