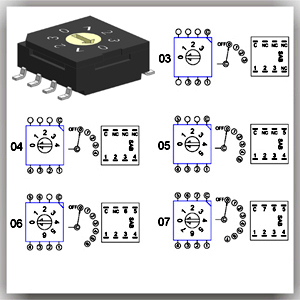

Contact Supplierrs80-s rotary selector switches:
soldering
hand soldering:soldering iron 30w at under 350°c/3sec.max.
reflow soldering:260°c±5°cwithin 10 sec.in-line or batch system
wave soldering:270°c /5 sec.max
mechanical
operation force: 1000g max.
operation temp: -40°c to +85°c
-40°c to +125°c(reflow slodering)
storage temp: -25 °c to +70°c
mechanical life: 20,000steps
electrical
electrical life: 20,000 steps
non-switching rating: 100ma, 50vdc.
switching rating: 20ma, 5vdc.
contact resistance: 50mω max. at initial.
insulation resistance: (at 500vdc)1000mω min after life test
dielectric strength: 250vac/1minute
many different kinds of rotary selector switches, pls contact us for more detail information.
