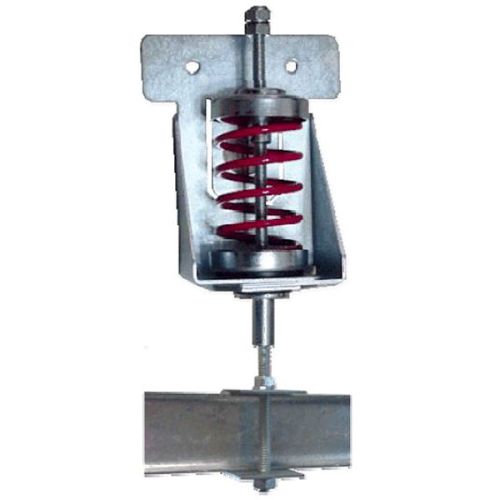

RSIC-S1-CRC DOUBLE DEFLECTION SPRING ISOLATOR

The RSIC-SI-CRC Double Deflection Spring Isolator is designed to isolate the ceiling consisting of 1.5" x 16 galvanized cold rolled channel and furring channel, (25 or 20 Gauge). The RSIC-SI-CRC clip is available in 10 lb, 20 lb, 40 lb, 80 lb, 120 lb and 160 lb versions. The 80 lb, 120 lb and 160 lb isolators allow for spacing at 48" x 48" oc supporting 2, 3 or 4 layers of 58" gypsum board. The lighter weight springs (5 lb ~ 40 lb) may be used for single layer ceilings, edge or corner isolation. The RSICSI- CRC clips unique universal mounting system allows it to be mounted to wood and steel framed systems. The RSIC-SI-CRC isolator can also be mounted to concrete with the addition of the RSICSI Overhead adapter.
SPECIFICATIONS:
Acoustical Design Load: 5 Lb to 160Lb
Total Deflection:: 1 Inch
Double Deflection: Yes
Pre-Calibrated: Yes
Pre-Assembled: Yes
Adjustable: Yes
Cavity Min: 1" (Wood)
Cavity Max: 9"
Adjustment Limit: 6"
Use On Ceilings: Yes
Use On Walls: No
New Construction: Yes
Retro Fit: Yes
BENEFITS:
RSIC-SI-CRC reduces vibrations as low as 5 hz.
Rubber bushings dampen the spring for highest acoustical performance.
Reduced labor expense with fully assembled and pre-calibrated isolators.
RSIC-SI-CRC is engineered for full 1" spring deflection.
