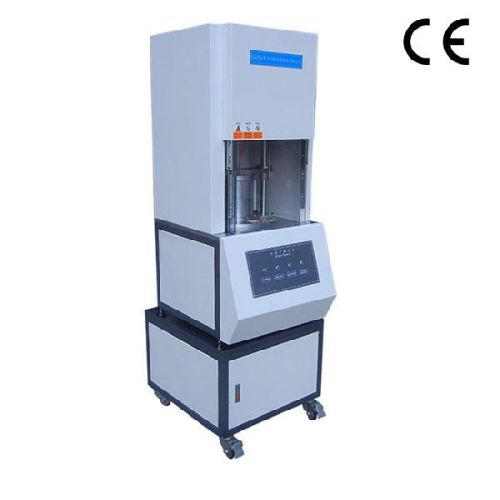

RT-101 Moving Die Rheometer, Brand Name : Right, Certificate : CE

Equipment summary:
rt-101 moving die rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, for optimize formula of rubber provide accurate data, it can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
Technical parameter:
model: rt-101
standard: gbt16584 is06502
temperature: room temperature to 200 centigrade
heating-up: 15 centigrademin
temperature fluctuation: â�¤ â±0.3 centigrade
temperature resolution : 0.1 centigrade
torque range: 0-5n.m,0-10n.m,�0-20n.m
torque resolution: 0.001nm
power: 50hz, ~220vâ±10%
pressure: about 0.4mpa
air-pressure requirement: 0.5mpa--0.65mpa (user prepare the dia 8 trachea)
environment temperature : 10 centigrade--20 centigrade
humidity range: 55--75%rh
compressed air: 0.35-0.40mpa
swing frequency : 100rmin(about 1.67hz)
swing angle: â±0.5 centigrade ,â±1 centigrade ,â±3 centigrade
printing: date,time,temperature,vulcanization curve,temperature curve,ml,mh,ts1,ts2,t10,t50,vc1,vc2.
Features:
1. This instrument is really confined mold cavity, and the united states alpha (formerly monsanto) has done. Repeatability, and test data comparable with the alpha. At the international leading position in the same industry.
2,.the instrument development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor). The technical leadership of international new trend.
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate
