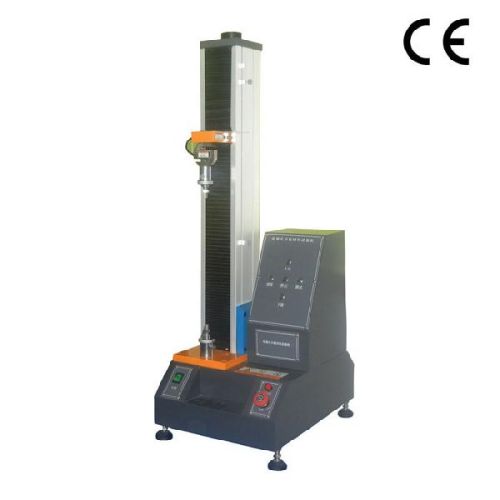

RT-201 1KN Computer Servo Universal Material Testing Machine

Equipment summary�
rt-201a desktop computer servo testing machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, has high accuracy and sensitivity for the load, displacement measurement and control. this series of machine using single-space structure, operational space at the bottom,it is mainly applied to test non-metallic and metallic material ,which the load is less than 2kn , it has the parameters, such as stress,strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength, elastic modulus, rate of elongation, yield strength and others.
technical parameters:
model rt-201a
maximum load 50n,100n,200n, 500n, 1kn,2kn(optional )
accurate grade 1grade 0.5 grade
effective measuring range force from 0.2% to 100% from 0.4% to 100%
measuring accuracy the value â±1% the value â±0.5%
tester resolution max load: 1200000, constant the resolution
load sensor basic configuration sensor max load: one
effective tensile stoke 500mm (can be increased the tensile space according to customers requirement )
testing speed from 0.001 to 500mmmin
accuracy of displacement measurement tolerance:â±0.5% tolerance: â±0.2%
safety electronic-limit protection
testing platform moving device fast slow( two speeds to control ),can jog
return back manual or automatic operation, after the test, the moving iron return to initial position with the highest speed by manual or autom
